Product Description
The Fusion2Go 5G delivers the highest uplink power in all 7 cellular bands with 60% more amplified 5G spectrum (516 MHz total) compared to other consumer boosters to keep you reliably connected even when you're further away from the cell tower.
- Supports 2G, 3G, and 4G/LTE connectivity services
- Maximum gain and power throughout the most remote areas on and off the road
- Supports multiple simultaneous users
- Works with all Canadian cell carriers
- Compatible with all cellular devices, including hotspots, while extending their battery life
- Boosts 7 cellular bands
- No recurring fees
- 2XP technology offers 2x uplink power for best performance in the most rural/remote areas
- High quality materials for longevity and connectivity when you need it
- Industry best 3-year warranty and lifetime US-based tech support
- Designed, assembled and tested in the USA
Quick Setup Guide
How It Works
A cell phone signal booster captures a nearby cellular signal, amplifies it, and broadcasts that signal in the space that needs a better cell phone signal. Cell booster kits come in two options: building and mobile/vehicle. The building options works for small & large homes, offices, apartments and commercial buildings; while the mobile/vehicle options works for cars, trucks, and RVs (basically, any powered vehicle that moves).
Regardless of the space, the specific components of a cell phone booster include:
- Outside Antenna - Installs on the exterior in the facility that receives the strongest signal from a nearby cell tower. This captures weak signals from outside, and pulls it into the facility.
- Signal Booster - Receives the weak signal from the outside antenna and amplifies the signal strength before sending the improved cellular signal to the inside antenna(s).
- Inside Antenna(s) - These are installed inside to distribute the amplified signal throughout your building or vehicle. Some buildings may require multiple indoor antennas and/or multiple boosters.
- Cables - Connects the outdoor antenna with the booster and the booster with the indoor antenna.
Technical Information
| Uplink Frequency Range (MHz): | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1780 / 2500-2570 |
| Downlink Frequency Range (MHz): | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2180 / 2620-2690 |
| Supported Standards: | 4G, LTE, 5G cellular standards |
| Cellular Bands: | 12 / 17 / 13 / 5 / 2 / 25 / 4 / 66 / 7 |
| Maximum Gain | 50 dB |
| Input Impedance: | 50 Ohm |
| Gain Adjustment: | 20 dB (Automatic) |
| Maximum Uplink Power: | 29.0 dBm |
| DC Power: | 6-15V |
| Noise Figure: | ≤ 8 dB |
| VSWR: | ≤2.0 |
| Maximum Output Power: | 1 Watt EIRP |
| Exterior Cable: | SC-174 / 12.5 ft. |
| RF Connectors: | FME Male (both ends) |
| Power Consumption: | ≤ 12W |
| Operation Temperature: | -4° to +158° F |
| Certification: | IC: 7784A-FUSION2GO5G | Contains IC: 8595A-NINAB1 |

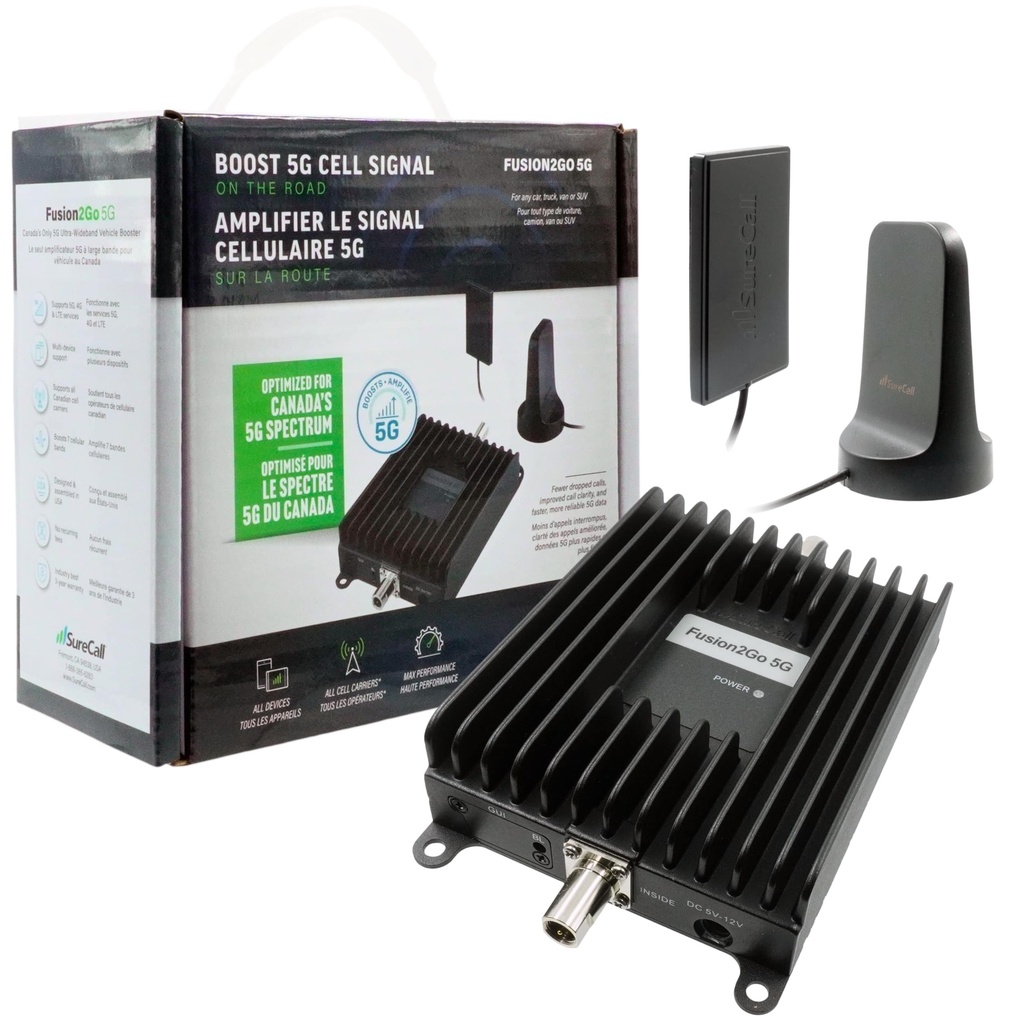

Kit Contents
The Booster Kit Includes The Fusion2Go Booster Kit (SC-Fusion2Go5G), which includes:
- Outside antenna (12.5 ft.)
- Fusion2Go 5G Signal Booster
- Inside patch antenna
- DC power supply
