Ram 1500-5500 (13-UP) GM (22-UP) Dash Bracket

Product Description

This PanaVise cell phone and media mount is compatible with DODGE / RAM 1500-5500 (2013-2018) with Open Cubby by Climate Control.

Find more specifications below or let us know if you need more information.

Read instructions completely prior to starting installation. All InDash Mounts are designed so that after installation, phone is facing normal driver position for lefthand drive vehicles. This mount is not designed to be used in foreign countries with right-hand drive vehicles. Use extreme care when working around the plastic components on the dash. Excess force, can cause breakage of the plastic components.

Installation Instructions

• STEP #1: Remove the right side of climate control cubby mat, by lifting up to release (2) rubber studs. Set aside
• STEP #2: Place InDash by PanaVise Mount bottom on left side of cubby with Lpart of bracket going to the right at the back of cubby above dividing line. Install the (4) screws supplied in the (4) Mounting holes. (2) at the back and (2) just inside the cubby. Make sure the mount is flush to the side of the cubby prior to installing the back (2) screws. Carefully replace the rubber cubby mat.

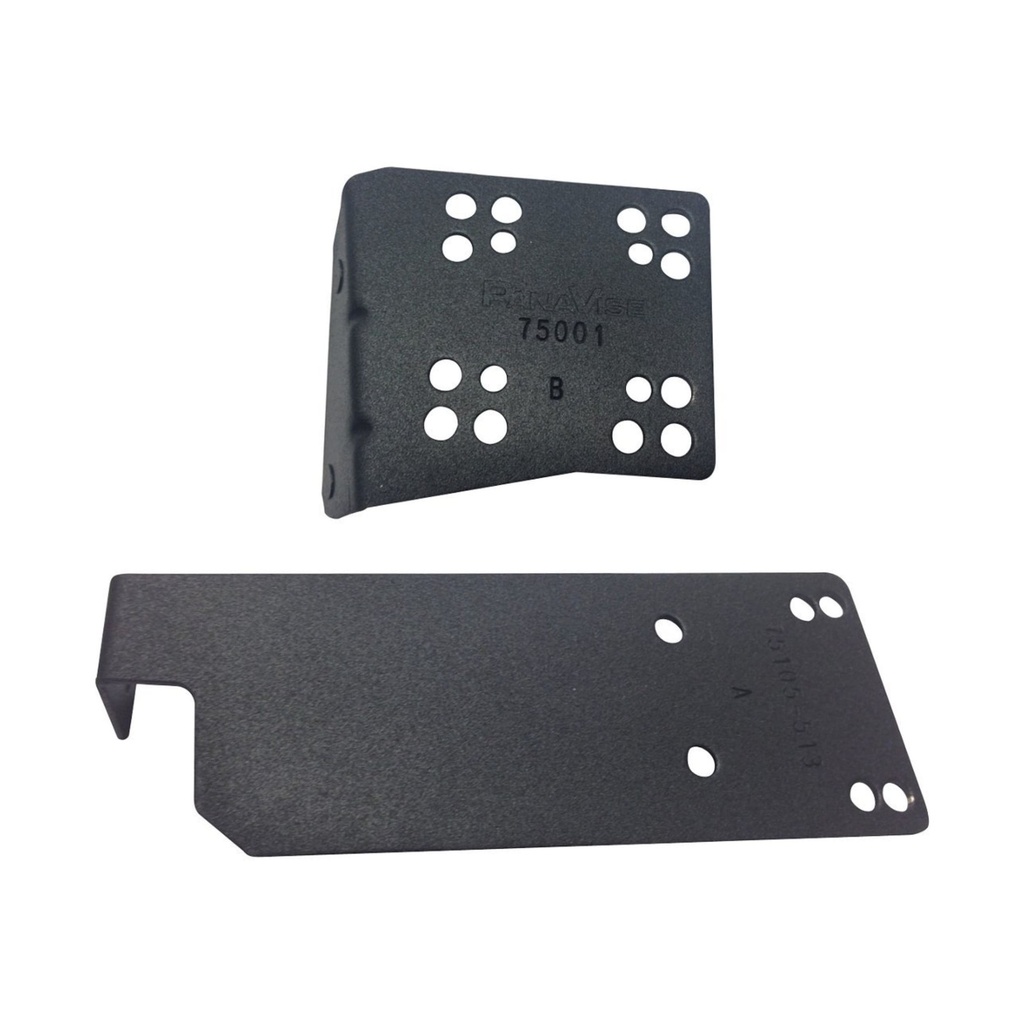

• STEP #3: Install the Top part of the InDash by PanaVise Mount (75001) with the (2) Acorn nuts.


INSTALLATION IS NOW COMPLETE. ENJOY YOUR NEW INDASH by PANAVISE MOUNT.

 Download Instruction Manual

Specifications
