CHRYSLER, DODGE, JEEP, RAM, VW Dash Bracket (08 & UP)

https://www.expertmobile.ca/web/image/product.template/5593/image_1920?unique=613c71e

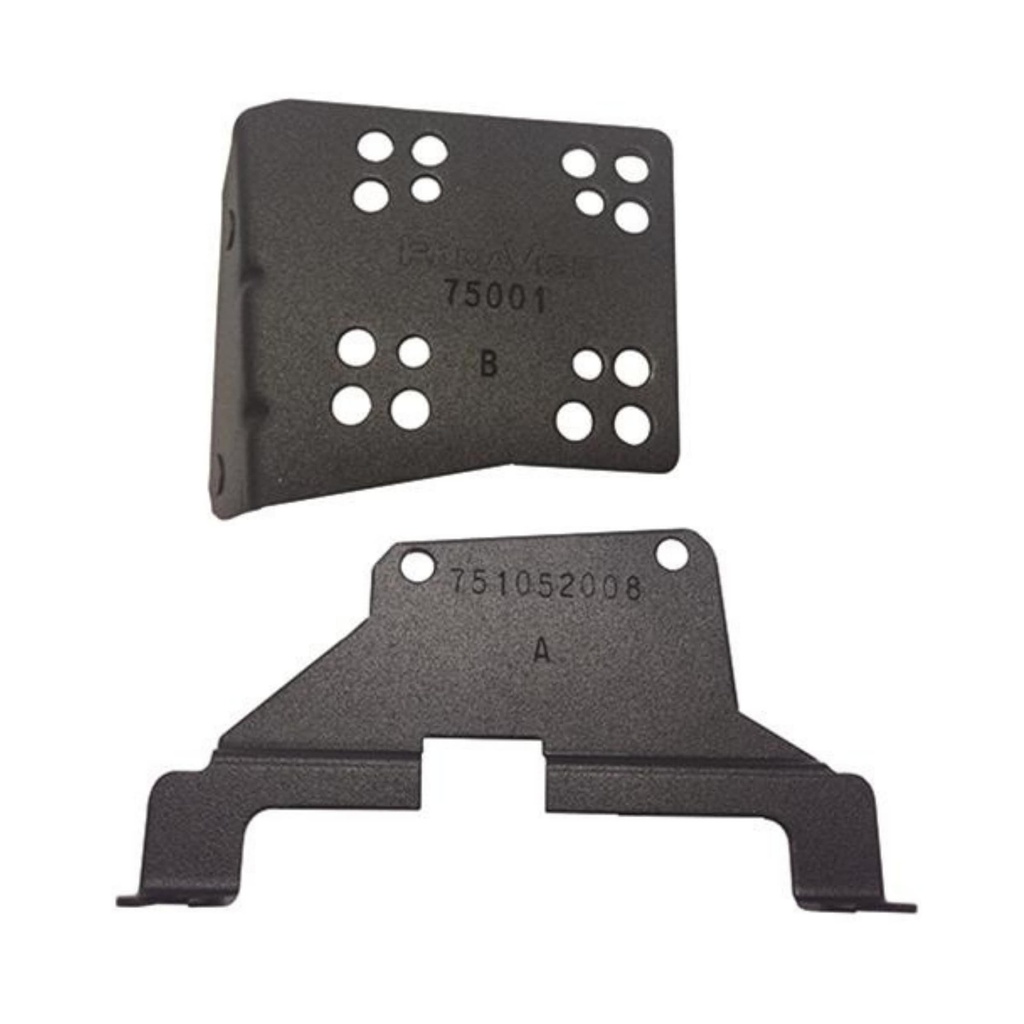

#751052008 - PanaVise radio mount dash bracket, compatible with CHRYSLER, DODGE, JEEP, RAM, VW (08 & UP).

37.95 37.95 CAD 37.95

37.95

Not Available For Sale

    This combination does not exist.

    Find Dealers

    Terms and Conditions
    We collect payments in Canadian Dollars (CAD)
    30-day money-back guarantee
    Same-day shipping if ordered before 3 P.M. MT.

    Product Description

    This PanaVise radio mount dash bracket, compatible with CHRYSLER, DODGE, JEEP, RAM, VW (08 & UP). Find more specifications below or let us know if you need more information.



    Read instructions completely prior to starting installation. All InDash Mounts are designed so that after installation, phone is facing normal driver position for lefthand drive vehicles. This mount is not designed to be used in foreign countries with right-hand drive vehicles. Use extreme care when working around the plastic components on the dash. Excess force, can cause breakage of the plastic components.

    Installation Instructions

    Start here for Jeep Wrangler 2008-2010 (Download Instruction Manual for other vehicles)

    • STEP #1: With Hook/Dash Tool remove the lower cover plate by inserting Hook Tool into the upper right then left corner, pulling to release (1) clip on each side. Tilt it out and pull up to remove. Set cover aside.
    • STEP #2: To remove the top cover above the radio. With the Hook Tool, lift up on the front of the top cover to release (1) clip on each side. Tilt up the front of the cover and pull it towards you to release. Set it aside.
    • STEP #3: With 9/32" socket driver remove the (4) screws, (2) top and (2) bottom. With your hands starting at the top of the radio, release the bezel that goes from the top of the radio down to below the switches and power outlet. There are (6) total clips only as far as needed to get at the right side radio screws.
    • STEP#4: Remove the (2) screws with 7mm socket driver. Install bottom piece of InDash by PanaVise Mount over screw holes and reinstall the (2) screws. Replace the bezel starting at the bottom, tilting it into place.
    • STEP#5: Install the top part of InDash by PanaVise Mount with the (2) Acorn nuts.


    INSTALLATION IS NOW COMPLETE. ENJOY YOUR NEW INDASH by PANAVISE MOUNT.


     Download Instruction Manual

    Specifications


    Part number751052008
    MFG.
    CHRYSLER / DODGE / JEEP / RAM / VW
    Models & Years
    • Liberty (8-12)
    • CHRY-200 (11-14)
    • DODGE: Dakota (8-11)
    • CHRY Sebring & Conv (7-10)
    • DODGE Avenger (8-10)
    • Avenger (11-14)
    • JEEP Grand Cherokee (8-10)
    • Commander (8-10)
    • DODGE Grand Caravan (8-10) (11-17)
    • CHRY T&C (8-10) (11-16)
    • JEEP Patriot (09-15)
    • Compass (09-11)
    • CHRY 300C (8-10)
    • Magnm (08)
    • Charger (8-10)
    • DODGE Durango (8-09)
    • Aspen (8-09)
    • DODGE Challenger (9-14)
    • Nitro(8-11)
    • Caliber(9-10) (11-12)
    • Journey.ex. R/T (09-10)
    • DODGE RAM 1500 (9-12); 2500-5500 cons.shft; 2500-5500 cons.shft (10-12)
    • DODGE RAM 1500 (9-11); 2500-5500 cons.shft
    • RAM 1500 (9-11) colmn.shft
    • RAM 2500-5500 (10-11) cons.shft
    • VW-Routan 13-15
    Mounting location
    • Right side of radio cavity K R
    • (2) Locations, Lower R and Upper R
    Tools required for installation
    • Hook tool, Dash Tool, 7mm
    • Phillips screwdriver, T-20 Torx
    Parts Included
    • (1) S7-1981, S7-1932 (75001)
    • (Radio, MyGig/ Nav Mount)
