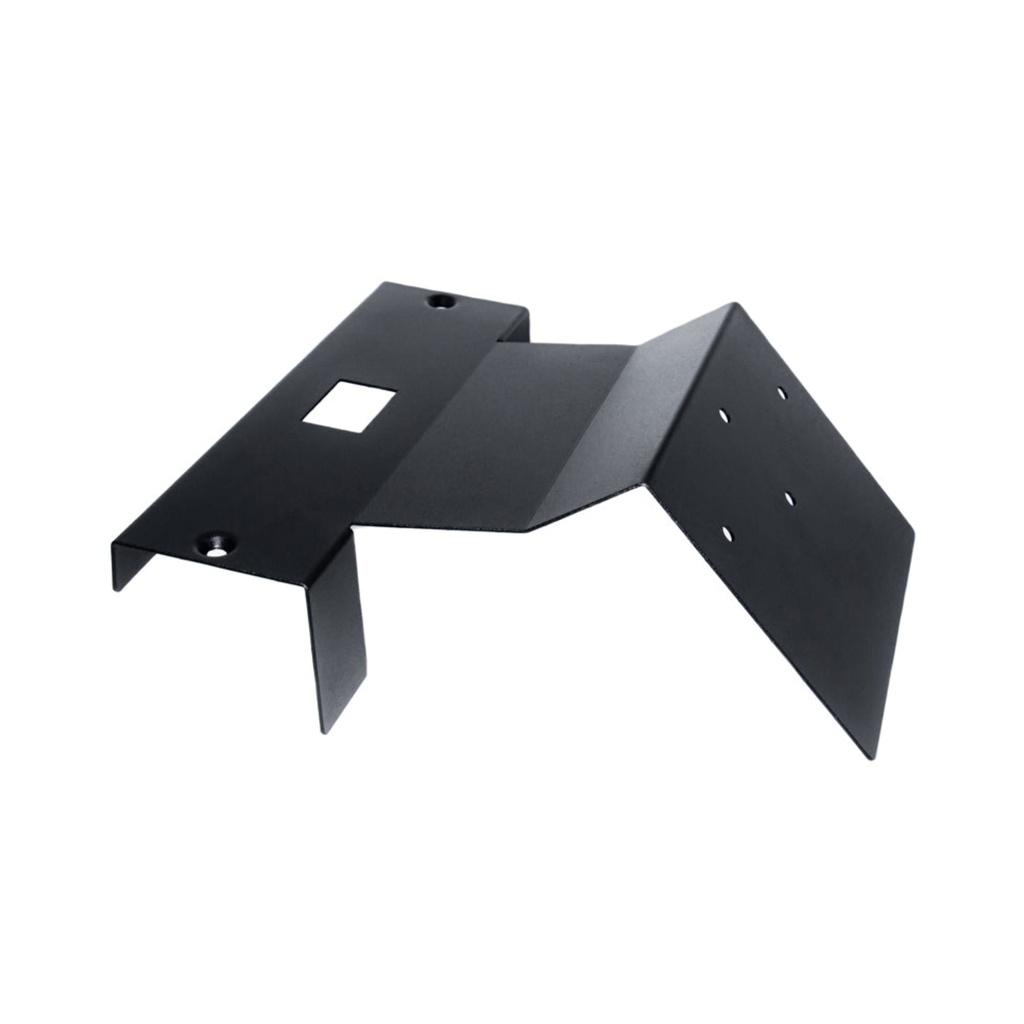

FORD F-Series Center Seat Radio Mount Bracket

https://www.expertmobile.ca/web/image/product.template/6646/image_1920?unique=b80cdf1

#751073015 - PanaVise communications device mount, compatible with Ford F-150, F250, F450/550 (Universal Fit).

45.00 45.0 CAD 45.00

45.00

Not Available For Sale

    This combination does not exist.

    Product Description

    PanaVise communications device mount, compatible with Ford F-150, F250, F450/550 Center Seat, w/o Floor Shift With Kenwood NX700/800 Two Way Radio, Other Radios TBD, Drill to Universal Fit. Find more specifications below or let us know if you need more information.



    Read instructions completely prior to starting installation. All InDash Mounts are designed so that after installation, phone is facing normal driver position for lefthand drive vehicles. This mount is not designed to be used in foreign countries with right-hand drive vehicles. Use extreme care when working around the plastic components on the dash. Excess force, can cause breakage of the plastic components.

    Installation Instructions

    • STEP #1: Open the lower cover of the center seat compartment. Remove the snap-in cup holder, as it will not be available for use with this mount.
    • STEP #2: With T20 Torx driver, remove the 2 screws at the front top of the seat compartment base.
    • STEP #3: Take the 5mm Drill Bit and drill out the 2 holes, and tap the 2 holes with M6 -1.00 Tap
    • STEP #4: Install the radio bracket onto the mount with the (4) screws supplied by the radio manufacturer.
    • STEP #5: Place the mount over the 2 holes and install the flat head screws.


    INSTALLATION IS NOW COMPLETE. ENJOY YOUR NEW INDASH by PANAVISE MOUNT.


     Download Instruction Manual

    Specifications


    Part number751073015
    MFG.
    Ford
    Models & Years
    • F150 2015-2017. w/Center Seat
    • F250, F350 2017. w/Center Seat
    • F450/5502017,CntrSeat, w/o Floor Shift
    • With Kenwood NX700/800 2Way Radio,
    • Other Radios TBD, Drill to Universal Fit.
    Mounting locationIn Front of Center Seat
    Tools required for installation
    • Phillips Head Screwdriver
    • Drill w/5mm bit, M6 -1.00 Tap
    • 4 mm Allen Wrench
    Hardware Included(2) 6M -1.00x20mm, Flat Head Socket Cap
    Screw-BLK.
