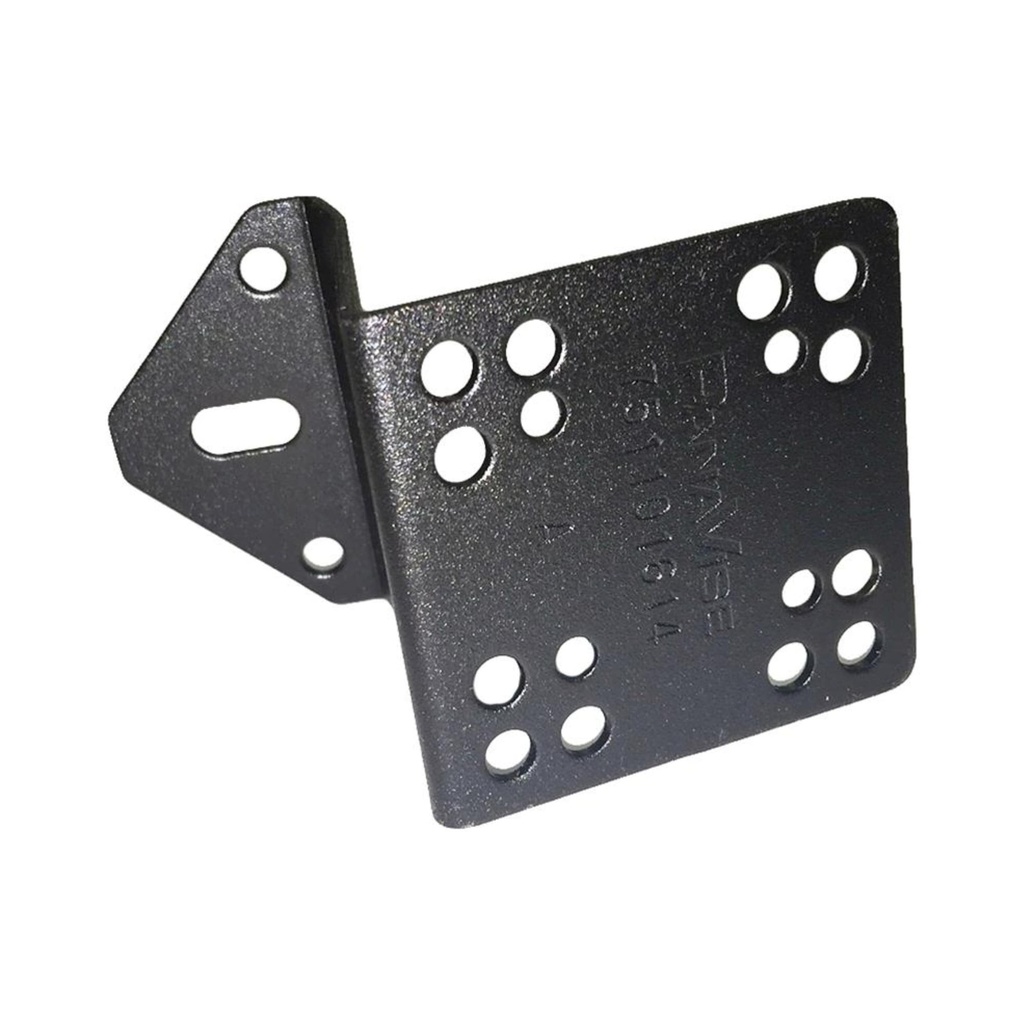

Chevy/GMC (14-UP) Above Radio Dash Bracket

https://www.expertmobile.ca/web/image/product.template/5588/image_1920?unique=b80cdf1

#751101614 - PanaVise cell phone and media mount dash bracket, compatible with CHEVY / GMC (2014-2019).

37.95 37.95 CAD 37.95

37.95

Not Available For Sale

    This combination does not exist.

    Product Description

    This PanaVise cell phone and media mount is compatible with CHEVY/GMC (2014-2019). Find more specifications below or let us know if you need more information.



    Read instructions completely prior to starting installation. All InDash Mounts are designed so that after installation, phone is facing normal driver position for lefthand drive vehicles. This mount is not designed to be used in foreign countries with right-hand drive vehicles. Use extreme care when working around the plastic components on the dash. Excess force, can cause breakage of the plastic components.

    Installation Instructions

    • STEP #1: With Dash tool remove the bezel around the Radio, may include switches. There are (10) total clips that hold it in place.
    • STEP #2: Remove (1) of the upper dash screws with 7mm socket driver.
    • STEP #3: Place the InDash Mount slot over the screw hole. Replace the screw while pushing the mount up to be flush with the dash. Thighten the screw.
    • STEP #4: Install 2 of the 3 supplied screws into the holes to the sides of the mount.
    • STEP #5: Replace the bezel.


    INSTALLATION IS NOW COMPLETE. ENJOY YOUR NEW INDASH by PANAVISE MOUNT.


     Download Instruction Manual

    Specifications


    Part number751101614
    MFG.
    CHEVY / GMC
    Models & Years
    • CHEVY 1500 Silverado (2014-2018)
    • 2500 / 3500HD Silverado (2015-2019)
    • GMC 1500 Sierra (2014-2018)
    • 2500 / 3500HD Sierra (2015-2019)
    Mounting locationAbove Radio/Display JP RLU
    Tools required for installationDash Tool
    7mm Socket Driver
    Parts Included
    • (1) 751101614 Mount
    • (3) A - #8x9/16" Needle Pt. Screw
