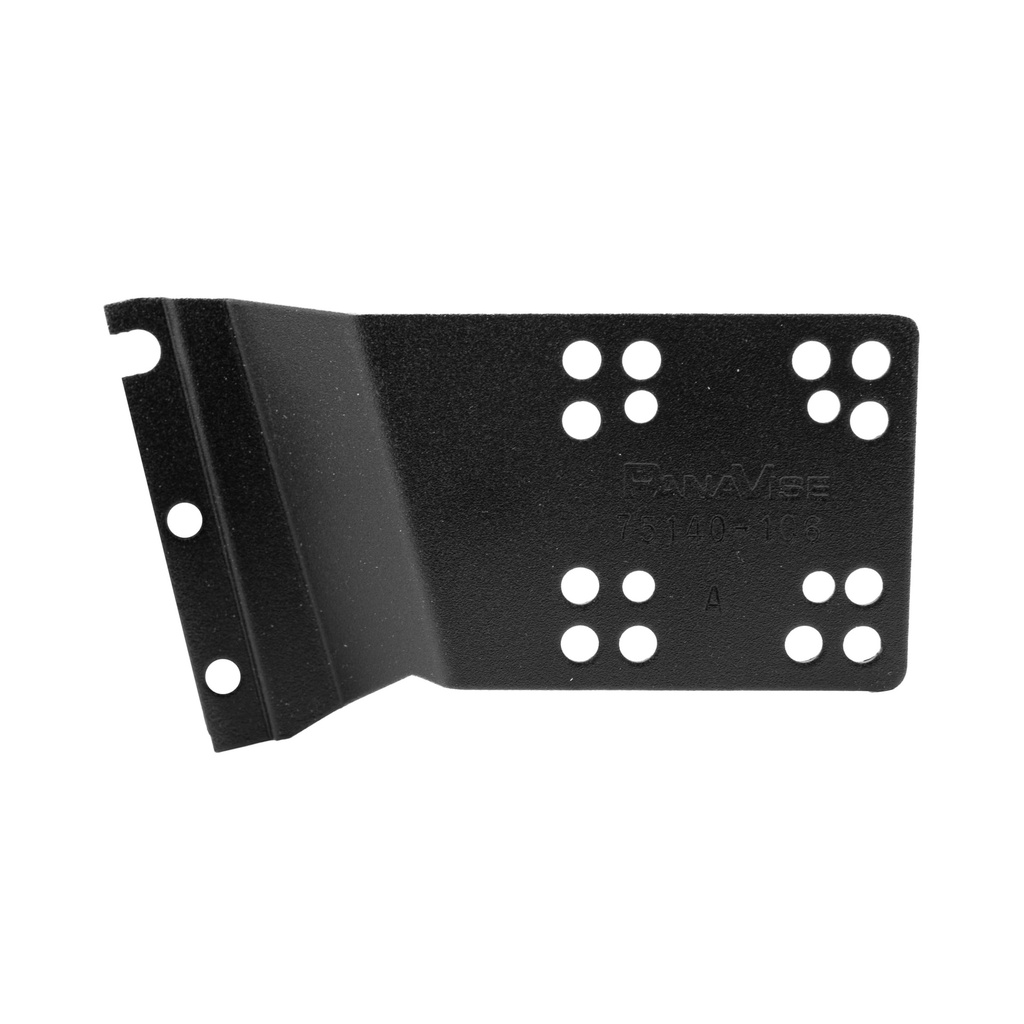

Peterbilt (06-UP) Dash Bracket

https://www.expertmobile.ca/web/image/product.template/4585/image_1920?unique=613c71e

#75140-106 - PanaVise cell phone and media mount, compatible with Peterbilt Conventional 2006-2019.

47.95 47.95 CAD 47.95

47.95

Not Available For Sale

    This combination does not exist.

    Find Dealers

    Terms and Conditions
    We collect payments in Canadian Dollars (CAD)
    30-day money-back guarantee
    Same-day shipping if ordered before 3 P.M. MT.

    Product Description

    This mounting bracket is compatible with Peterbilt Conventional 2006-2019 (partially inclusive of: 365, 367, 379, 384, 386, 388, 389). Find more specifications below or let us know if you need more information.



    Read instructions completely prior to starting installation. All InDash Mounts are designed so that after installation, phone is facing normal driver position for lefthand drive vehicles. This mount is not designed to be used in foreign countries with right-hand drive vehicles. Use extreme care when working around the plastic components on the dash. Excess force, can cause breakage of the plastic components.

    Installation Instructions

    • STEP #1: With hook tool assist, remove the thin strip below the center air vents and above switches. Start from the right side, lift up to release (3) clips and tilt it out to release lip from left side of strip.
    • STEP #2: With Phillips screwdriver remove the (2) screws exposed that hold the dash cover in place. With your hands pull on the dash cover to release (4) peg clips. Do not try to remove the plate completely. Pull out only enough to get a power screwdriver in to install the screws.
    • STEP #3: Place Mount to right side of center air vent. Carefully install (3) supplied self drilling/tapping screws. It is best to use a power drill.
    • STEP #4: Snap the dash cover back into place. It may be necessary to pull out the clips slightly (1/8"-1/4") on the trim strip to help it stay in place when it is replaced. Also straightening of the clip lips could help seat the clip better into the dash.


    INSTALLATION IS NOW COMPLETE. ENJOY YOUR NEW INDASH by PANAVISE MOUNT.


     Download Instruction Manual

    Specifications


    Part number75140-106
    MFG.
    Peterbilt
    Models & YearsConventional 2006-2019. Partially Inclusive of the Following: 365, 367, 377, 378, 379, 384, 386, 388, 389
    Mounting locationRight side of center air vent V R
    Tools required for installationHook tool, Phillips screwdriver
    Parts Included(3) F- #8x1/2 Phillips PanHead Tap Screw
    (1) S7140-106 Mount
