Product Description

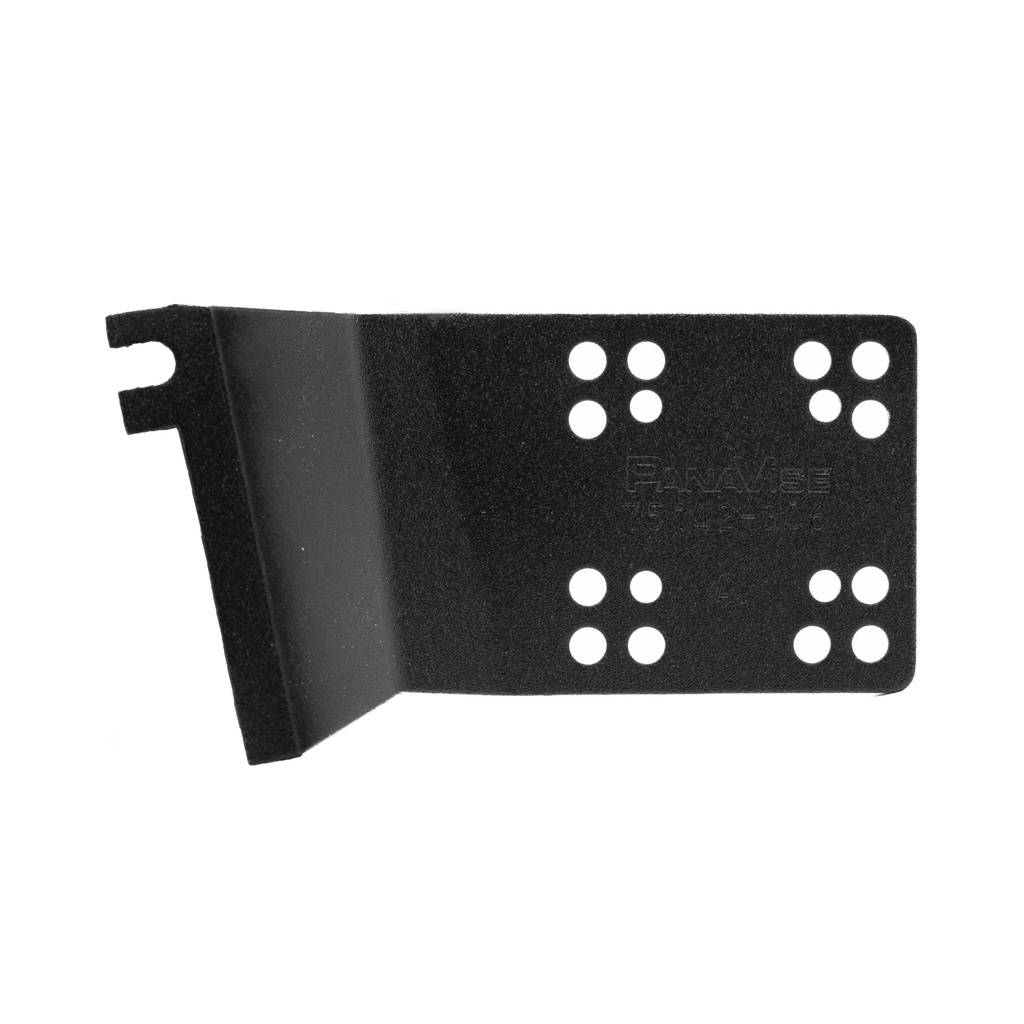

This PanaVise cell phone and media mount is compatible with Kenworth T440, T470, T600, T660 (06-18), T800 (06-19), ICON900, W900, C500 (06-19). Find more specifications below or let us know if you need more information.
Read instructions completely prior to starting installation. All InDash Mounts are designed so that after installation, phone is facing normal driver position for lefthand drive vehicles. This mount is not designed to be used in foreign countries with right-hand drive vehicles. Use extreme care when working around the plastic components on the dash. Excess force, can cause breakage of the plastic components.
Installation Instructions
- STEP #1: With hook tool, remove the bezel that goes from the right of the radio, gauges and switches all the way to the drivers door. There are a total of (13) clips holding this bezel in place.
- STEP #2: With Phillips screwdriver remove the upper right screw on center gauge panel. Lift up the gauge panel and slide InDash by PanaVise Mount under panel and over screw hole on upper right of gauges. Replace the screws, making sure the side of the mount is flush with the dash before trying to put the bezel back in place.
- STEP #3: Replace the bezel starting from the drivers door side and working to the right side. The InDash by PanaVise Mount should be flush to the dash before the bezel can be installed by the mount.
INSTALLATION IS NOW COMPLETE. ENJOY YOUR NEW INDASH by PANAVISE MOUNT.
Specifications
| Part number | 75142-306 |
| MFG. | Kenworth |
| Models & Years |
|
| Mounting location | Right side of radio cavity K R |
| Tools required for installation | Dash Tool, Hook tool Phillips screwdriver |
| Parts Included | (1)S7-1876 Mount |
