Product Description

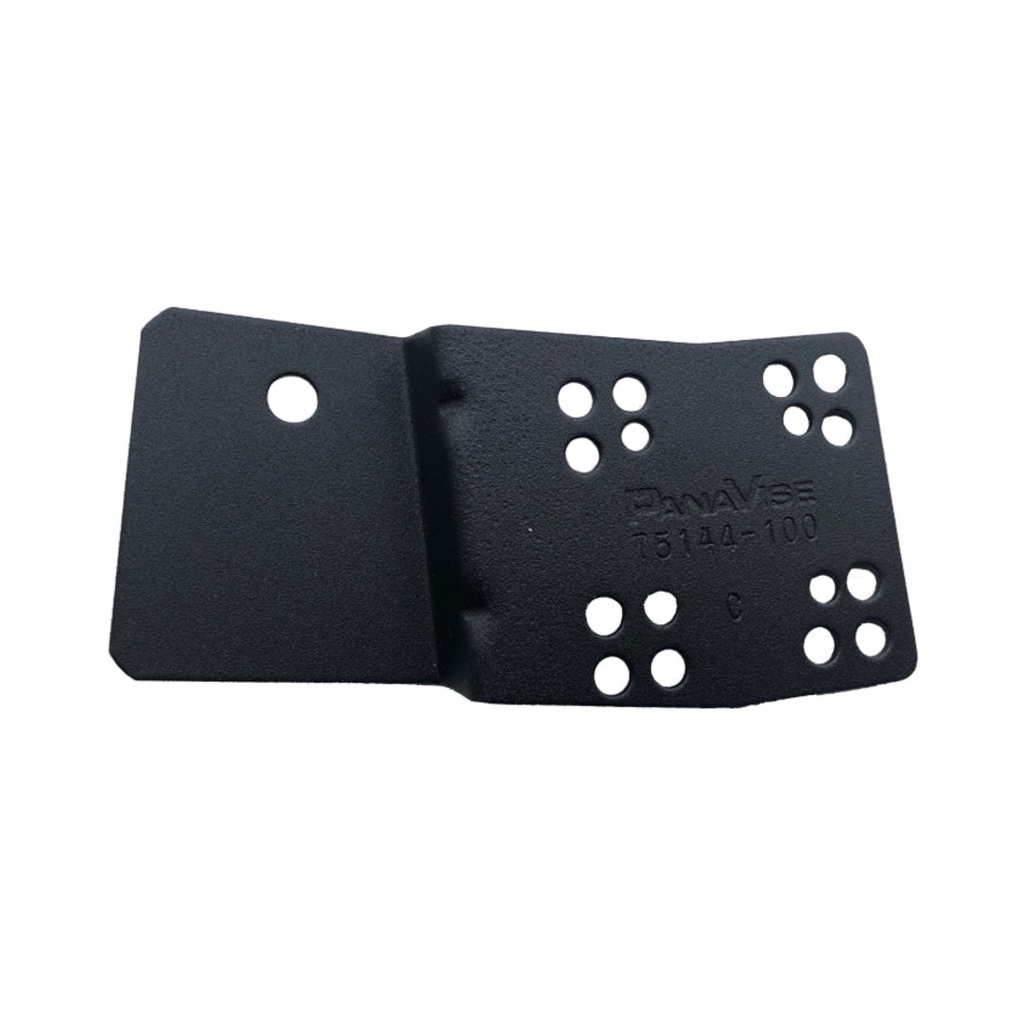

This mounting bracket is compatible with Western Star Semi-ALL (1996-2019). Find more specifications below or let us know if you need more information.
Read instructions completely prior to starting installation. All InDash Mounts are designed so that after installation, phone is facing normal driver position for lefthand drive vehicles. This mount is not designed to be used in foreign countries with right-hand drive vehicles. Use extreme care when working around the plastic components on the dash. Excess force, can cause breakage of the plastic components.
Installation Instructions
- STEP #1: Remove (2) Phillips screws located on top of the right instrument panel located above the dashboard rocker switches.
- STEP #2: Pull woodgrain panel back approximately 2 inches on top. Panel is hinged on the bottom. Locate air vent at upper right-hand corner of panel.
- STEP #3: Slide InDash mount into right corner position and align outside hole of woodgrain panel hole and reassemble factory Phillips screw through panel and InDash Mount into threaded nut of dash.
- STEP #4: Attach phone holder to Mount.
NOTE: Mounts taken off of older model trucks may need to enlarge the screw hole in mount to fit newer models.
INSTALLATION IS NOW COMPLETE. ENJOY YOUR NEW INDASH by PANAVISE MOUNT.
Specifications
Part number | 75144-100 |
MFG. | Western Star |
Models & Years | SEMI - ALL 1996-2019 |
Mounting location | Upper right of dash cavity K UR |
Tools required for installation | Phillips screwdriver |
Parts Included | (1) S7144-100 Mount |
