Product Functions
Improve your base station operations with a hands-free communication solution. The footswitch allows you to activate the radio's transmission without using your hands, enabling efficient multitasking.

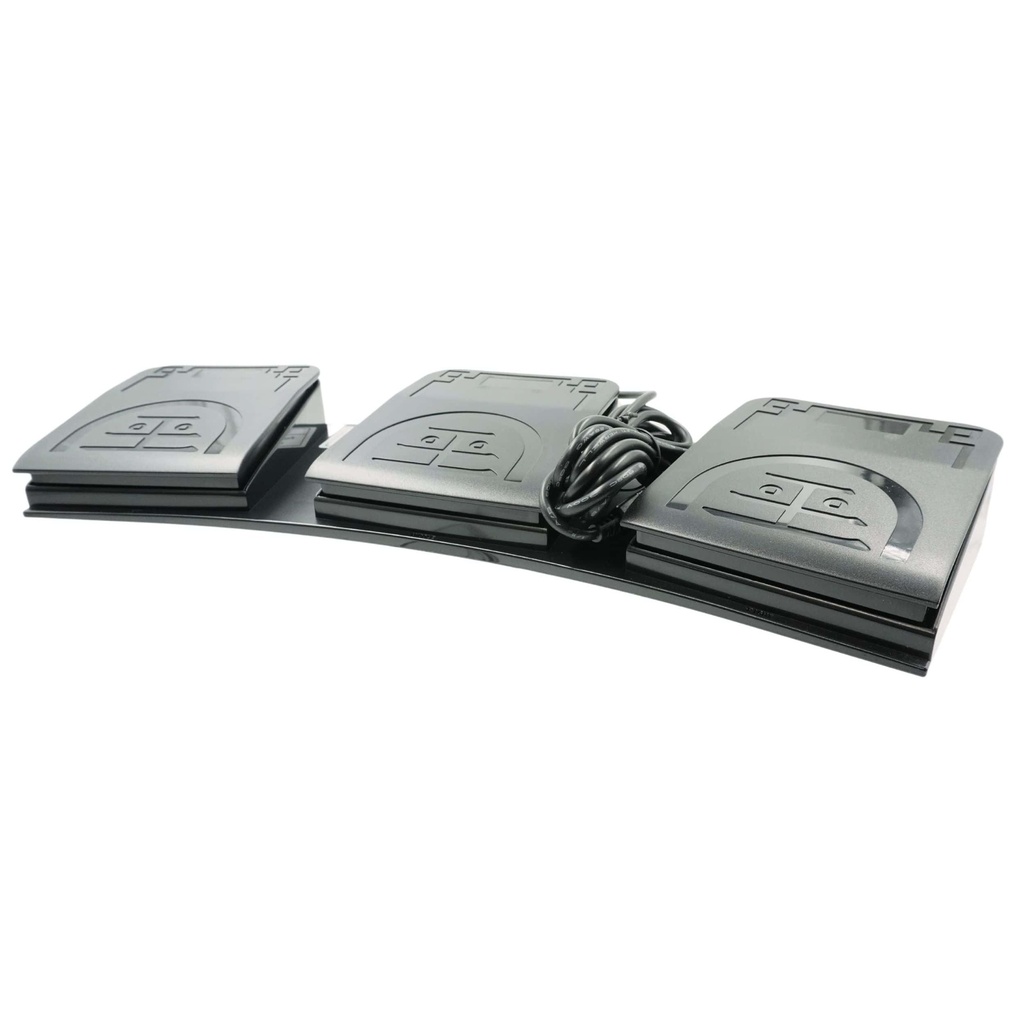

This is a triple footswitch comes with a variety of custom functions. Each pedal can be assigned to any key or combination of keys via the software provided.
- Mechanical switch
- USB connection
- Non-slip pedals
Get your footswitch now and enhance your productivity!
Instructions
To use this footswitch pedal, a software installation is required. Download and install the latest version of Elfkey, then follow the steps below (also in packaging).
- Software Download: software.pcsensor.com
- Compatible with: Windows OS.
STEPS
- Connect the device to your computer via USB cable
- Run Elfkey software
- Click "Clear"
- Click the input window
- Select or enter the key value that you want to set
- Click "Save"
Technical Information
Please contact us if your need more information
Model # | FS20207U1IR |
| Product Type | FS2020 (triple silent photoelectric switch) |
Number of pedals | 3 |
Interface | USB |
| Working Current | 5V @ 30mA |
Life | >300,000 times |
Dimensions | 375 x 150 x 46 mm |
Weight | ~449g |
Cable Length | 2 meters (please let us know if you want it customized for your needs) |
