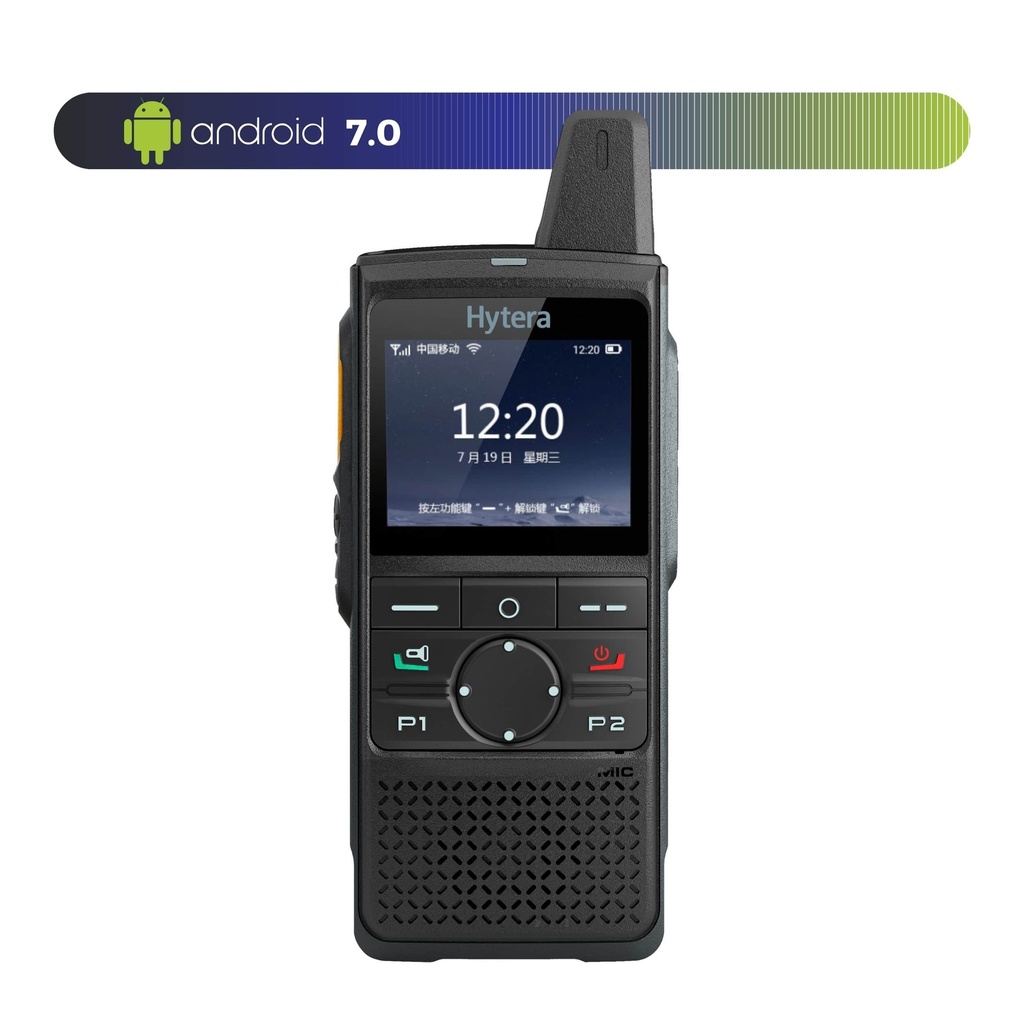

PNC370 Product Description
The PNC370 is a compact, durable, and easy-to-operate handheld radio that enables connectivity over 3G/4G/LTE and Wi-Fi for wide-area radio communications. The PNC370 radios with Hytera HALO can be deployed very quickly to deliver the features highlighted below at a lower cost than traditional radio systems.
The PNC370 and other Hytera PoC devices are part of the Hytera HyTalk Nationwide PoC solution that uses cellular 4G/LTE infrastructure, and the Hytera HyTalk OnSite own-your-own PoC platform. The PNC370 is supported on Hytera HyTalk Dispatch, a powerful web-based GPS dispatch and fleet communications application.
PNC370 PoC Radio - Data Sheet
PNC370 Key Features
NATIONWIDE COVERAGE
National workforce communication with mobile 4G/LTE connectivity supported by the Micro-SIM.
BUILT-IN BLUETOOTH
Built-in Bluetooth supports wireless connection with audio accessories for improved efficiency and hands free operation.
RELIABLE AND DURABLE
The PNC370 is compliant with MIL-STD-810 G and IP54, delivering a long-lasting solution even in challenging environments.
STUN AND REVIVE
The PNC370 can be remotely stunned or reactivated by the dispatcher. Other features include call recording, detailed call logs and emergency calling.
LED FLASHLIGHT
With one-touch operation, the LED flashlight provides convenient illumination.
PRE-INSTALLED APPS
Pre-installed Android apps provide convenient PoC services.
EMERGENCY ALARMS AND CALLING
Emergency Alarms can be sent to other radios via the one touch programmable button to improve worker safety and emergency response time.
REAL-TIME AVAILABILITY
Check the status of contacts in real-time (online or offline), providing clear information about team availability.
BUILT-IN WI-FI
Enables connectivity to Wi-Fi networks, and automatically switches over to the LTE network when out of Wi-Fi range.
VERSATILE VOICE CALLS WITH EXCELLENT AUDIO QUALITY
Noise suppression guarantees audio quality for individual, group and emergency calls.
GPS POSITIONING AND REAL-TIME CLOCK
Built-in GPS supports tracking and positioning for dispatching, as well as the RTC for displaying call history.
LONG-LIFE BATTERY
The impressive battery capacity delivers up to 18 hours of working time, supported with Micro-USB charging to make it easy to charge anytime, anywhere.
PNC370 Package Contents
- Handheld - Hytera PNC370 PoC Radio
- Battery - BL3101 Li-ion Battery
- Power Adapter - PS2023
- USB Charging Cable - PC143
- Carrying strap - RO03
- Belt Clip - BC08
Compatible PTT Apps
HYTALK - Hytera's Recommended PTT App - is specifically designed for seamless integration with Hytera PoC radios. We provide full support for HYTALK to ensure the best experience. Please note that we do not offer support for third-party PTT apps.
PLEASE NOTE: While other PTT apps can provide basic PTT functionality on this PoC radio, they may not unlock its full capabilities. For support with these third-party apps, please contact the respective app provider directly. We only offer support for Hytera's HYTALK and Inrico's iConvNet app services.
- iConvNet - Tested
- Zello - Untested
- And more...
Technical Information
Please contact us if you need more technical information about this product.
Standards and Frequencies
LTE | FDD:B2/B4/B5/B7/B12/B17/B26/B28 TDD:B38/B41 |
WCDMA | B2/B4/B5 |
GSM | 850/900/1800/1900 |
WLAN | 2.4GHz, 802.11 b/g/n |
Bluetooth | BT 4.1 |
Positioning System | GPS/BDS/GLONASS |
Environmental
| Operating Temperature | -20°C ~ +60°C |
Storage Temperature | -30°C ~ +70°C |
ESD | IEC 61000-4-2 ±8 kV (Contact) ±12 kV (Air) |
Dust & Water Ingress Protection | IP54 Standard |
Shock and Vibration | MIL-STD-810 G Standard |
Drop Resistance | 1.2m |
Transceiver
| Audio Power Output | 1W (Rated) (Max: 2W) |
Mic | Dual mic noise suppression |
General
| Battery | 3100mAh (Li-ion) |
Battery Life (10/10/80) | ≥18h (5-5-90 working cycle) |
Weight | 185g (with battery) |
Dimensions (H x W x D) | 121 x 55.5 x 24mm |
Operating System | Android 7.0 |
Memory | RAM: 512M; ROM: 4GB |
SIM Card | Micro SIM (12x15mm) |
Display | 2.0'' 320×240 TFT/Non-touch |
Port | Micro USB 2.0 2.5mm Audio Jack Dock Charger interface |
Operating Voltage | 3.6V (Rated) |
Positioning | GPS/Galileo/AGPS |
