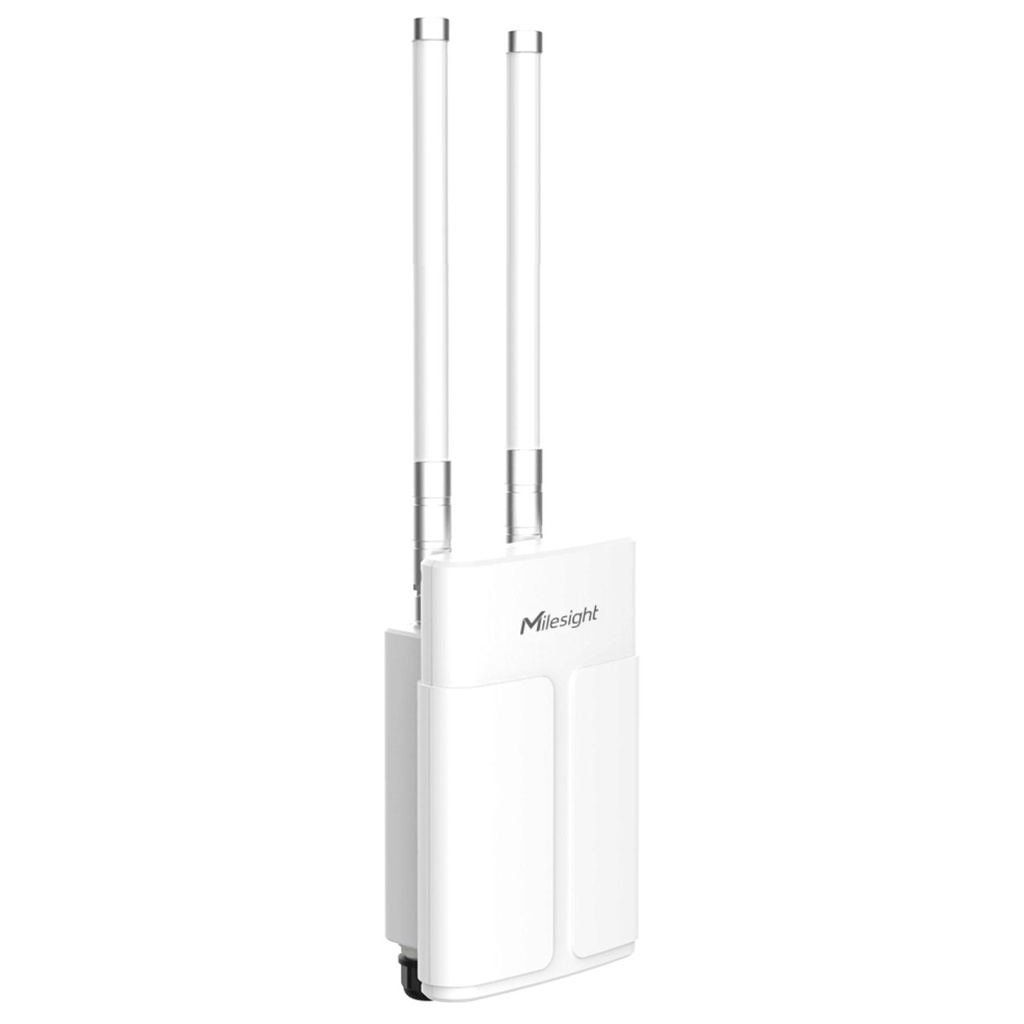

Milesight UG67 Outdoor LoRaWAN Gateway

https://www.expertmobile.ca/web/image/product.template/5852/image_1920?unique=c537491

New Generation Performant Outdoor LoRaWAN Gateway featuring IP67 rated enclosure and PoE-PD (Powered Device), the UG67 Outdoor LoRaWAN gateway is well suited for working in harsh outdoor environment.

599.99 599.99 CAD 599.99

599.99

Not Available For Sale

    This combination does not exist.

    Find Dealers

    Terms and Conditions

    We collect payments in Canadian Dollars (CAD)
    30-day money-back guarantee
    Same-day shipping if ordered before 3 P.M. MT.

    Milesight IoT Promo


    Get 50% off when you buy 10 or more of the Milesight UG67 or UG65 LoRaWAN Gateway. Simply add any combination of 10 or more of the eligible products to your cart and your 50% discount will automatically be applied at checkout.


    Contact us if you have questions


    Product Description

    UG67 Outdoor LoRaWAN® Gateway.

    UG67 is a robust 8-channel outdoor LoRaWAN® gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connection with more than 2000 nodes. UG67 has line of sight up to 15 km and IP67 waterproof case, which is ideally suited to smart agriculture, smart metering and

    many other outdoor applications.

    UG67 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.


    • IP67 Rating
    • 64-bit Quad-Core Processor
    • New SX1302 LoRa Chip
    • Built-in Supercapacitor
    • Multiple Backhaul Connectivities
    • Embedded Network Server
    • Compatible with Multiple Network Servers
    • Global LoRaWAN® Frequency Plans


    Find more in features and specifications below or let us know if you need more information.



    Application Example




    Features

    • Quad-core industrial processor with large memory
    • Equipped with SX1302 chip, handling a higher amount of traffic on lower consumption
    • 8 half/full-duplex channels IP67 waterproof enclosure and industrial design for harsh environment applications
    • Wall or pole mounting (optional)
    • PoE or DC supply (optional)
    • Capacitor for sending alarms in case of power failure
    • Multi backhaul backups with Ethernet, cellular (4G/3G) and Wi-Fi
    • Enable security communication with multiple VPNs like IPsec/OpenVPN/LT2P/PPTP/DMVPN
    • Devicehub and Milesight IoT Cloud provide easy and centralized management of remote devices
    • Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet, etc.
    • Detects and analyzes noise level and provides intuitive diagram for deployment
    • Built-in network server and MQTT/HTTP/HTTPS API for easily integration
    • Supports BACnet/IP to integrate LoRaWAN data to BMS system easily
    • Embedded Python SDK for users in secondary development
    • Fast and user-friendly programming by Node-RED development tool

    Downloads


     UG67 LoRaWAN® Gateway Datasheet



     UG67 LoRaWAN® Gateway User Guide



     Payload Decoder



     Firmware & SDK Download

    Specifications


    Dimensions are in mm.



    Package Contents




    *Note: Contact us if you need any other special accessories or customized accessories.




    Hardware

    CPUQuad-core 1.5 GHz, 64-bit ARM Cortex-A53

    Memory

    512 MB DDR4 RAM

    Flash

    8 GB eMMC


    LoRaWAN

    Antenna Connector2 × 50 Ω N-Female External Connectors

    Channel

    8 (Half/Full-duplex)

    Frequency Band

    CN470/ IN865/ EU868/ RU864/ US915/ AU915/ KR920/ AS923 - 1 & 2 & 3 & 4

    Sensitivity

    -140 dBm Sensitivity @ 292 bps

    Output Power

    27 dBm Max

    Protocol

    V1.0 Class A/ Class B/ Class C and V1.0.2 Class A/ Class B/ Class C

    LBT1

    Supported


    Ethernet Interface
    Port1 × RJ45 (PoE PD Supported)

    Physical Layer

    10/ 100/ 1000 Base-T (IEEE 802.3)

    Data Rate

    10/ 100/ 1000 Mbps (Auto - Sensing)

    Interface

    Auto MDI/ MDIX

    Mode

    Full or Half Duplex (Auto - Sensing)


    Wi-Fi Interface
    AntennaInternal Antenna

    Standards

    IEEE 802.11b/g/n, 2.4 GHz

    Mode

    AP or Client Mode

    Security

    WPA/ WPA2 Authentication, WEP/ TKIP/ AES Encryption

    Tx Power

    802.11b: 18 dBm +/-2.0 dBm (11 Mbps)

    802.11g: 15 dBm +/-2.0 dBm (6 Mbps)

    802.11g: 15 dBm +/-2.0 dBm (54 Mbps)

    802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)

    802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)

    802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)

    802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)


    Cellular Interface
    AntennaInternal Antenna
    SIM Slot1 (mini SIM - 2FF)

    GPS
    AntennaInternal Antenna
    Sensitivity-167 dBm @ Tracking, -149 dBm @ Acquisition, -161 dBm @ Re-acquisition

    Position Accuracy

    <2.5m CEP


    Others
    Reset Button1 × RST
    Console Port1 × Type-C

    LED Indicators

    1 × SYS, 1 × LoRa, 1 × LTE

    Built-in

    Watchdog, RTC, Timer


    Software
    Network ProtocolsPPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, BACnet/IP, etc.

    VPN Tunnel

    OpenVPN/ IPsec/ PPTP/ L2TP/ GRE/ DMVPN

    Firewall

    ACL/ DMZ/ Port Mapping/ MAC Binding/ URL Filter

    Management

    Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform

    Reliability

    WAN Failover

    App

    Python SDK, Node-RED


    Power Supply and Consumption
    Power Supply

    1 × 802.3af PoE input

    DC Power (6~12 V) via M12 Connector

    Power Consumption

    Typical 3.6 W, Max 4.8 W


    Physical Characteristics

    Ingress ProtectionIP67
    Dimensions240 x 164 x 90.9 mm (9.45 x 6.46 x 3.58 in)
    InstallationWall or Pole Mounting


    Environmental

    Operating Temperature-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C
    Storage Temperature-40°C to +85°C (-40℉ to +185℉)
    Ethernet Isolation1.5 kV RMS
    Relative Humidity0% to 95% (non-condensing) at 25°C/77℉


    Approvals

    RegulatoryCE, FCC, RCM,TELEC, ANATEL
    EnvironmentalRoHS


    Unleash Connectivity, Embrace Possibility

    UG67 is a robust outdoor LoRaWAN® gateway designed for outdoor deployments. Powered by the SX1302 LoRa chip and a high-performance quad-core CPU, the UG67 can support connectivity with over 2000 nodes.



    Unleash Potential with Exceptional Performance.

    Harnessing cutting-edge hardware, UG67 unleashes exceptional performance capabilities, ensuring lightning-fast data processing.

    • 512 MB DDR4 RAM
    • 5 GHz 64-bit Quad-Core Processor.



    New Generation of LoRa Chip

    UG67 stands out for its remarkable ability to effectively handle substantial traffic loads while consuming minimal power.

    • Semtech SX1302
    • Full-Duplex
    • Support SF5 & SF6
    • LoRaWAN Class A/B/C

    Supercapacitor

     The embedded high-capacity capacitor enables UG67 to keep working for 1 minute to send an alert while the power outage happens.


    Connecting Thousands of Devices with Ease

    UG67 can receive data from 8 end-devices simultaneously. And it supports up to 2000 end devices.

    Flexible Connection with Internal and External Antennas

    • Integrated internal Cellular, and Wi-Fi antennas
    • Two external LoRa antennas are available to strengthen signal coverage.


    Antenna Installation Made Easy

    The Installation Board is offered for Easier Installation and Better Signal Coverage.

    Noise Analyzer

    Scan the noise and offer a spectrum of signal amplitudes on different frequencies for best deployment.




    Gateway Fleet

    The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.

    Simplify Your Processes with Node-RED

    With compatibility with Node-RED, users can easily integrate devices, APIs, and online services effortlessly.



    Enabling Multiple Backhaul Connectivities

    Stay connected via Ethernet, cellular and Wi-Fi to deliver encrypted data around the clock.

    High Compatibility with Multiple Network Servers

    • Embedded Network Server
    • LoRa Basics™ Station
    • AWS IoT Core for LoRaWAN
    • Compatible with Mainstream Network Servers


    Integrating with Building Management System Using BACnet


    With support for BACnet/IP, real-time data can be seamlessly integrated into existing Building Management System (BMS).


    BACnet over LoRaWAN®

    • LoRaWAN® serves as the data channel to the control applications
    • No changes to the BACnet protocol, network, or BACnet-enabled devices and management systems are needed

    LoRaWAN® as a Complementary Network

    • LoRaWAN® network is independent of the core BACnet infrastructure
    • The LoRaWAN® network feeds data to the BMS through a virtual BACnet server
    • LoRaWAN® data and sensors appear to be part of the BACnet system


    Cloud Data Management Milesight IoT Cloud

    • Data Visualization Dashboard: All figures in a glance
    • Automatic Triggers: Interactive collaboration with Milesight IoT sensors to realize scene-based automation
    • Regular Reports & Real-Time Alerts: Data-based insights
    • Android & iOS App: Manage devices at your fingertips


    Gateway Online Demo

    Milesight LoRaWAN® Gateway Online Demo offers more visibility into IoT data practices and increases transparency around your gateway governance and management.

    Online Demo


    Pole Mounting
    Wall Mounting
