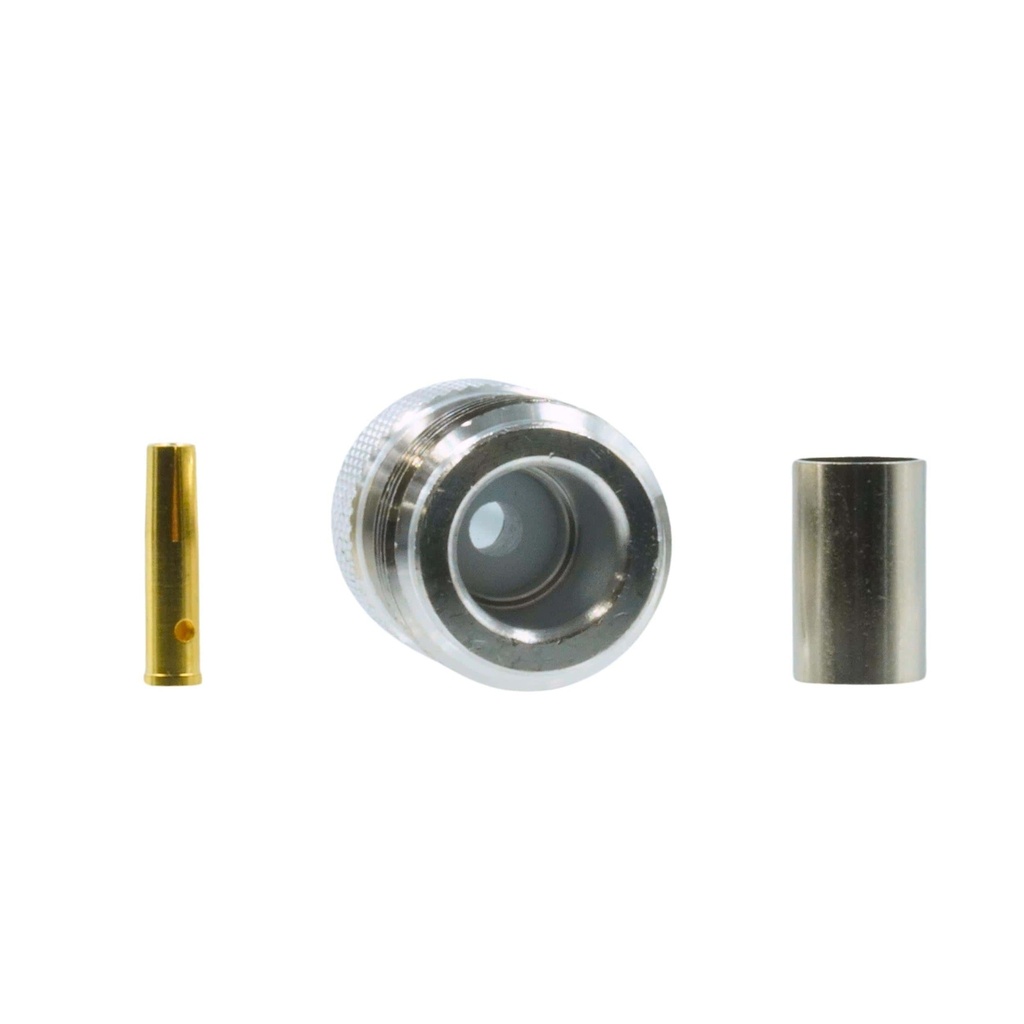

N Female Connector - LMR 240


Well built N Female connector for LMR240 cable series: Connectors made from gold-plated brass for mechanical durability and solid connection.

14.50 14.5 CAD 14.50


Not Available For Sale

    This combination does not exist.

    Find Dealers

    Terms and Conditions
    We collect payments in Canadian Dollars (CAD)
    30-day money-back guarantee
    Same-day shipping if ordered before 3 P.M. MT.

    Product Description

    This N Male connector uses a shield/contact crimp with a solderless pin as an attachment method and is compatible with LMR240 Equivalent low loss cables.

    LMR & LMR-240® is a registered trademark of Times Microwave Systems

    Technical Information

    Please contact us if you want more information.

    Cable Compatibility:LMR-240
    Interface:N Type
    Orientation:Straight Plug
    Impedance:50 ohms
    Frequency Range:DC to 2GHz
    Nominal Operating Temperature:-40 to+80℃
    VSWR: <1.15:1
    Body:Brass nickel plated
    Pin:Brass gold plated
    Insulator:Teflon © PTFE
