Product Description

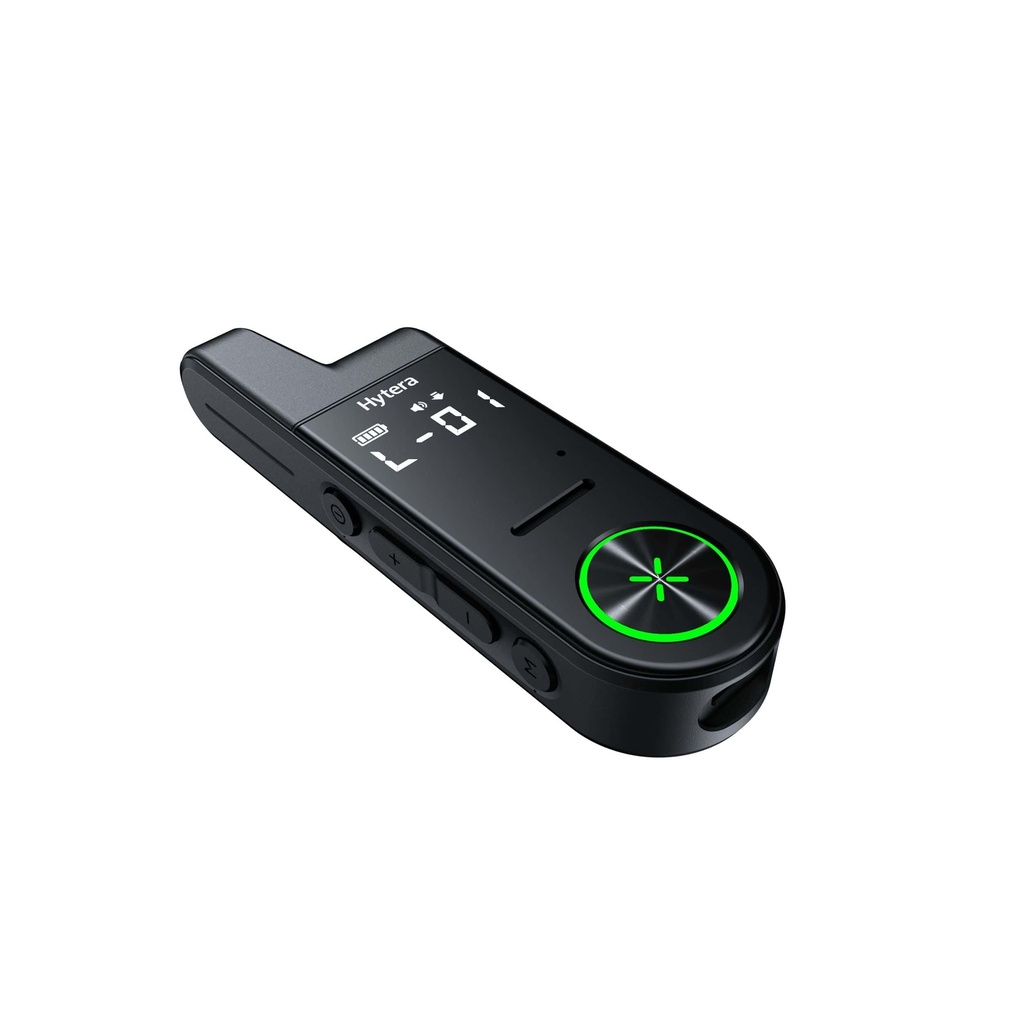

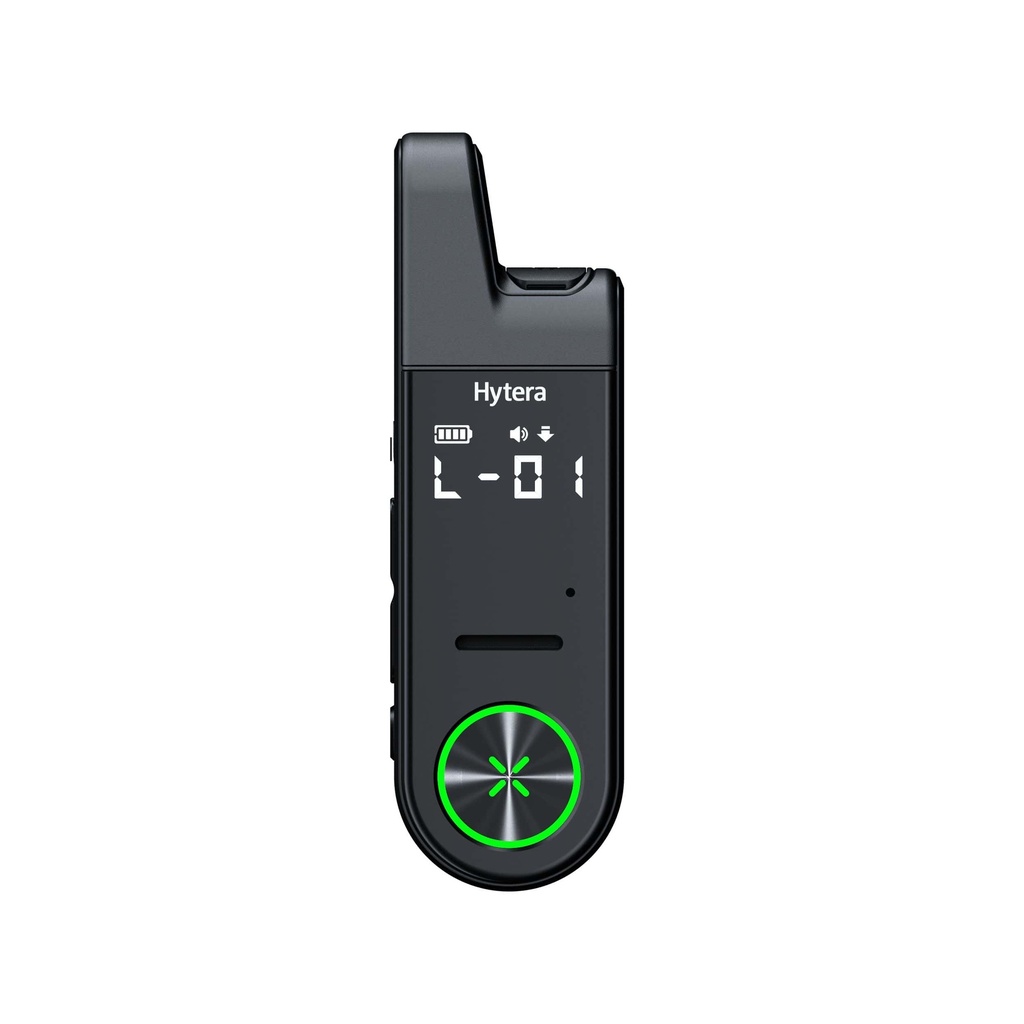

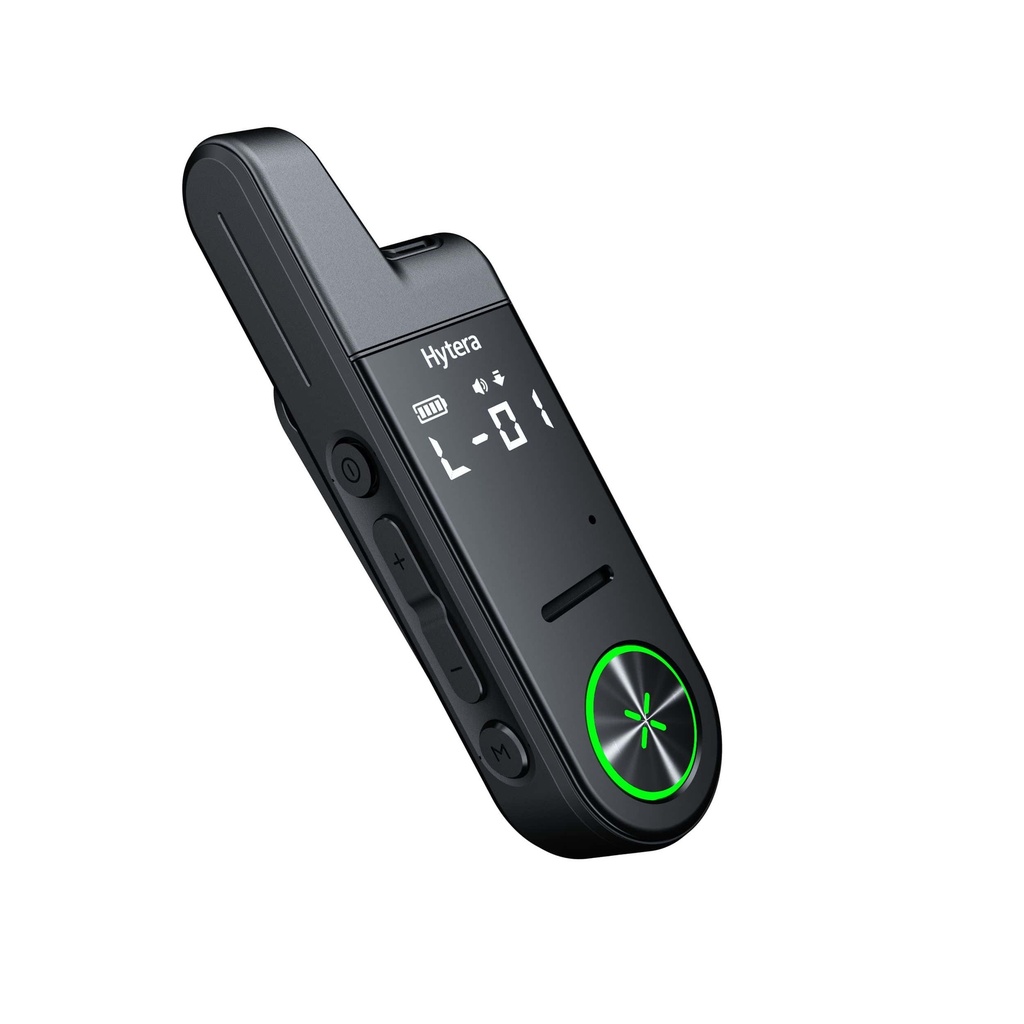

Hytera S1 mini is a tiny business-ready analog radio for restaurant, book store, or beauty salon, and more. It blends fashion and communication like never before—first-of-its-kind design, minimalist style, reliable PTT service, superb audio, long-lasting battery, and more.
This radio helps you stay better connected with your team while staying focused on your customers.
Hytera S1-Mini - Data Sheet
Hytera S1-Mini - Owners Manual
Key Features
FULL OLED DISPLAY
The HD OLED display shows you battery level, frequency, status, channel, and more. Additionally, you can create your own channel and radio names that are easy to remember and distinguish.
AI-BASED NOISE CANCELLATION
Filter out up to 30 dB noise thanks to professional AI-based noise cancellation algorithm. Your focus protected. Your productivity improved.
DIGITAL AND ANALOG FUNCTIONALITY
The radio is compatible with the existing radios and systems, regardless of digital or analog. The S1 Pro protects your assets in its way. More importantly, the digital error correction technology ensures the radio to deliver distortion-less voice and accurate data in a wider range.
THINNER AND LIGHTER
Optimized body construction of 145 g (With belt clip) in weight, 29.5 mm in depth.
PASSCODE ENABLED GROUP CHATS
Only those with the same passcode can join the group call. Protect the conversation against interference from neighboring groups.
FAST CHARGING & LONG BATTERY LIFE
2,200 mAh replaceable Li-Polymer battery for extra-long shifts
100% changed in 2.5 hours = 16-hour working time
Technical Information
Please contact us if you need more technical information about this product.
General
Frequency Range | 400-440 MHz, 430-470 MHz |
Channel Capacity | 16 |
Zone Capacity | 1 |
Operational Voltage | 3.8V (Rated) |
Battery | 750mAh Li-Polymer (Built-in) |
Battery Life (5/5/90 Duty Cycle, High TX Power) | With earpiece: 16 hrs (1W)/18 hrs (0.5W) |
Dimensions (H x W x D) | 99*30*16mm（without belt clip) |
Weight (with antenna and battery) | 48g |
Display | 0.88 inch |
BT (optional) | BLE (only data) 5.0 |
Environmental
| Operating Temperature | -10℃~ +55℃ |
Storage Temperature | -30℃ ~ +70℃ |
ESD | ±4kV (Contact) ±8kV (Air) |
Receiver
| Sensitivity | 0.14μV |
Rated Audio Power Output | 0.5W |
Transmitter
| Power Output | 400-440 MHz, 430-470 MHz: 1W |
Audio Response | +1 to -3dB |
Audio Distortion | ≤3% |
