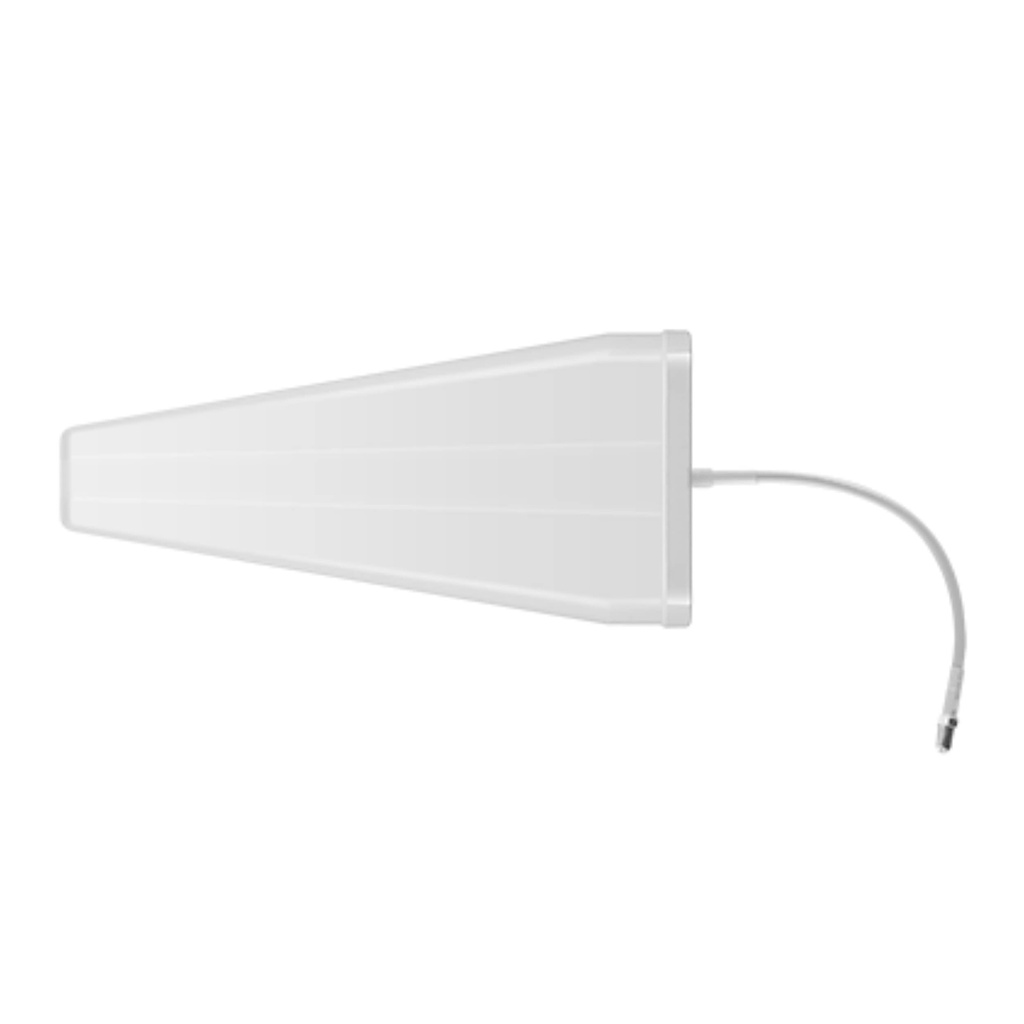

Cellular Outdoor Wedge Antenna 75 Ohm

https://www.expertmobile.ca/web/image/product.template/4835/image_1920?unique=613c71e

Wide band high-gain directional 75 Ohm antenna with F-Female connector designed for SureCall in-building cell phone signal boosters.

129.99 129.99 CAD 129.99

129.99

Not Available For Sale

    This combination does not exist.

    Find Dealers

    Terms and Conditions
    We collect payments in Canadian Dollars (CAD)
    30-day money-back guarantee
    Same-day shipping if ordered before 3 P.M. MT.

    Product Description

    Wide band high-gain directional 75 Ohm antenna with F-Female connector designed for SureCall in-building cell phone signal boosters.

    • F-Female connector
    • 8 dBi gain
    • 75 Ohm
    • Wide band: 2G, 3G & 4G LTE (698 - 2700 MHz)
    • Includes mounting hardware.

    Product Specifications

    Please contact us if you need more information

    Part NumberSC-231W
    Frequency698-806 / 806-960 / 1710-2700 MHz
    Input Impedence75 Ohm
    Antenna Gain8 dBi
    BeamwidthE50 H85 / E60 H85 / E50 H60
    VSWR≤2.0
    Polarization TypeVertical
    Radiation PatternDirectional
    Maximum Power50W
    Connector TypeF-Female
    Dimensions17.3" x 8" x 1.45"
    DiameterΦ40~50
    ColourWhite
    Weight2 lb 4 oz
    MountMounts on pipe up to 2" in diameter
    Operating Humidity≤ 95%
    Operating Temperature-40° F to +140° F
