Product Description

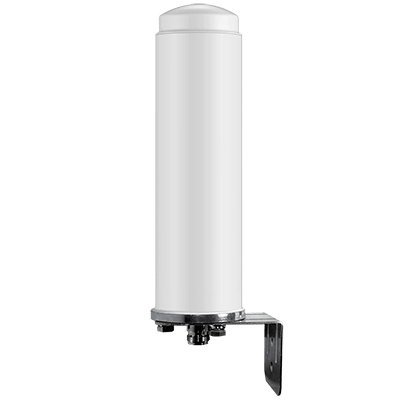

SureCall 4 dBi Fiberglass Wide Band Omni Directional Antenna, 698-960 MHz and 1710-2700 MHz, 9.5" Length, N-Female Connector. Wide band omni-directional 50 Ohm antenna with N-Female connector designed for use with SureCall in-building cell phone signal boosters.
- N-Female connector
- 2-3 dBi / 3-4 dBi
- 50 Ohm
- Wide band: 2G, 3G & 4G LTE (698 - 2700 MHz)
- Includes mounting hardware
Product Specifications
Please contact us if you need more information
| Part Number | SC-288W |
| Frequency | 698-960 / 1700-2700 MHz |
| Input Impedence | 50 Ohm |
| Antenna Gain | 2-3 dBi - 698-960 MHz 3-4 dBi - 1700-2700 MHz |
| Beamwidth | E:72 H:92 / E:50 H:80 |
| VSWR | ≤1.8 |
| IP Rating | IP65 |
| Polarization Type | Vertical |
| Radiation Pattern | Omni-Directional |
| Power Rating | 10 W |
| Maximum Power | 100 W |
| Connector Type | N-Female |
| Height | 9.5” |
| Width | 3.9" |
| Weight | 1 lb |
| Ground Plane | Built-in |
| Material | Fiberglass |
| Mount Type | Roof or Wall |
| Operating Humidity | ≤ 95% |
| Operating Temperature | -40° F to +149° F |
