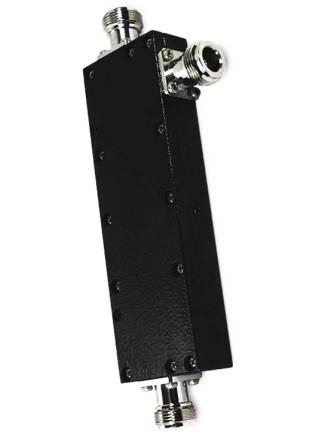

Cellular -10dB Tap (N-Female) Coupler

https://www.expertmobile.ca/web/image/product.template/3902/image_1920?unique=613c71e

For use in signal distribution systems to split the amplified signal for the multiple inside antennas with minimum signal loss.

85.00 85.0 CAD 85.00

85.00

Not Available For Sale

    This combination does not exist.

    Find Dealers

    Terms and Conditions
    We collect payments in Canadian Dollars (CAD)
    30-day money-back guarantee
    Same-day shipping if ordered before 3 P.M. MT.

    Product Features

    SureCall offers couplers in various options, including -6 dB, -10 dB, -15 dB, and -20 dB, all compatible with 2G, 3G, 4G, and 5G signal boosters across the 600 MHz to 2700 MHz range for all North American carriers. These couplers, also known as taps, play a crucial role in maintaining signal strength in a cell phone signal booster deployment with a series of indoor antennas covering a considerable distance. The purpose of these components is to unevenly distribute the incoming and outgoing signals, minimizing signal loss from one port. This ensures that the subsequent broadcast antenna in the setup receives a satisfactory signal despite the inherent signal loss from cables and multiple antennas.

     Download data sheet

    • -10 dB Coupler
    •  Power Split 67% Pass Thru / 33% Coupling
    • High In-Band Isolation and Low VSWR
    • Low Passive Intermodulation
    • Low Insertion Loss
    • Power Handling up to 200 Watt
    • For Use in Indoor Applications.

    Technical Information

    Please contact us if your need more information.

    Part Number
    SC-C-10
    Insertion Loss≤0.8 dB

    Coupling Degree (dB)

    -10dB

    Coupling Accuracy (±)

    1.2

    Isolation

    ≥29

    IP Grade

    IP64

    Coupling Port Loss6 ± 0.6 dB
    Directivity≥20 dB
    Frequency Range600 - 2700 MHz
    VSWR≤1.3:1
    Impedance50 Ohm
    Power Capacity200W
    ConnectorN-Female
    Operation Temperature-31°F to 140°F
    Dimensions120 x 40 x 17 mm (Without Connectors)

    Weight

    7.4 oz

    Colour

    Black
