2 Way Splitter Wideband

https://www.expertmobile.ca/web/image/product.template/3644/image_1920?unique=69efdfe

For use in signal distribution systems to split the amplified signal with minimum signal loss.

80.00 80.0 CAD 80.00

80.00

Not Available For Sale

    This combination does not exist.

    Find Dealers

    Terms and Conditions

    We collect payments in Canadian Dollars (CAD)
    30-day money-back guarantee
    Same-day shipping if ordered before 3 P.M. MT.

    Product Features

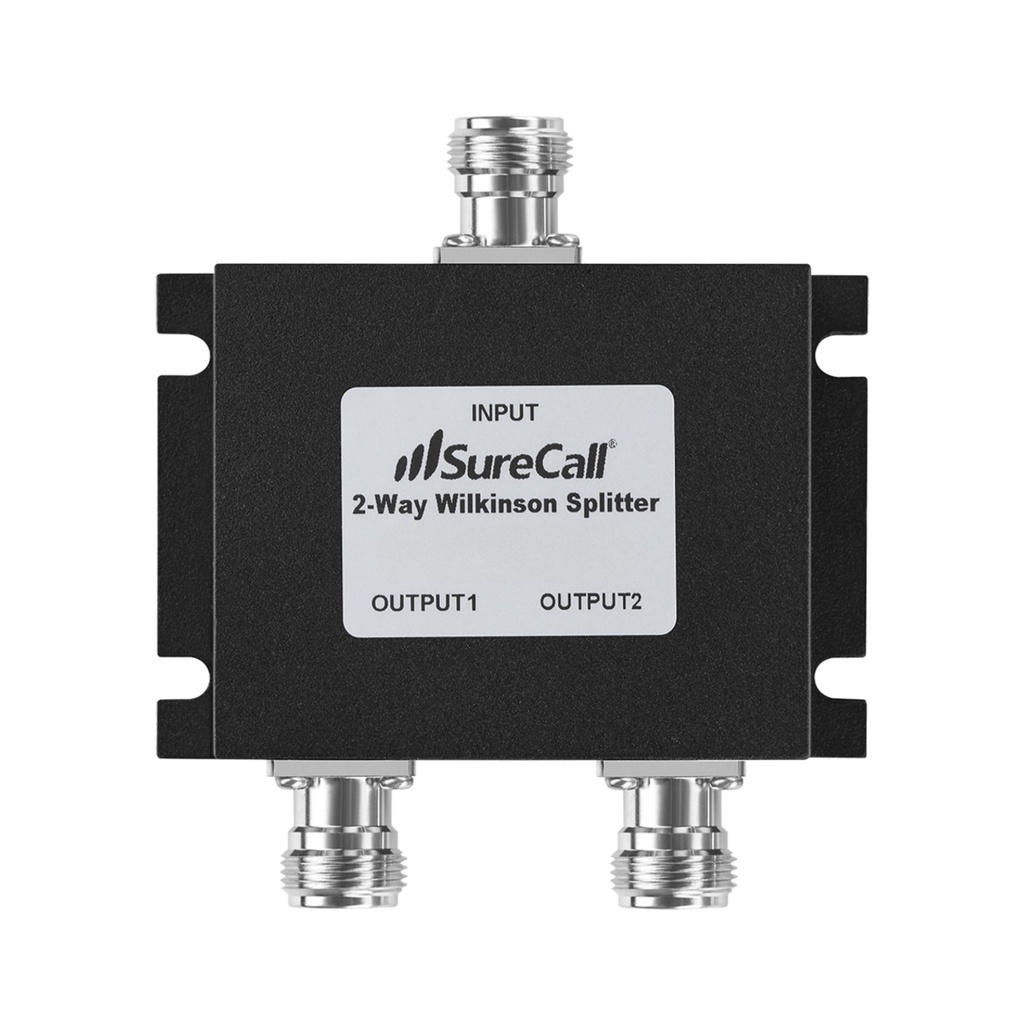

    SureCall 50 Ohm 2-Way Power Splitter, -3 dB, 600-2700 MHz, N Female, Square Body


    This accessory is great for deploying multiple antennas all of which are approximately the same distance from the amplifier and are thus suitable for an even distribution of signal strength. All splitter models are fully compatible with all 2G, 3G, 4G, and 5G signal booster deployments in the 600 MHz to 2700 MHz range under all North American carriers.


    For use in signal distribution systems to split the amplified signal with minimum signal loss. Equal amounts of signal sent to multiple antennas for similarly sizes areas.

     Download data sheet


    FEATURES

    • 2-Way Power Splitter
    • Low VSWR and Passive Intermodulation
    • Low Insertion Loss
    • Power Handling up to 300 Watt
    • For Use in Indoor Applications
    • High Reliability

    Technical Information

    Please contact us if you want more information.

    Part Number

    SCWS-2-5G

    Frequency Range600-2700 MHz
    ConnectorN Female
    Impedance50 ohm
    Splitter Type2-Way
    Distribution Loss3.0 dB
    Insertion Loss≤ 0.7 dB
    Isolation≥ 20 dB
    Power CapacityIN to OUT 50W / OUT to IN 2W
    VSWR≤1.:1
    MaterialCopper / ternary alloy plated
    ShellAluminum ADC12 / Black powder surface
    Operating Temperature-31°F to +149°F

    Operating Humidity

    ≤ 95%

    Class of Protection

    IP55

    Dimensions

    3.8" x 3.5" x 0.8"
