Product Description

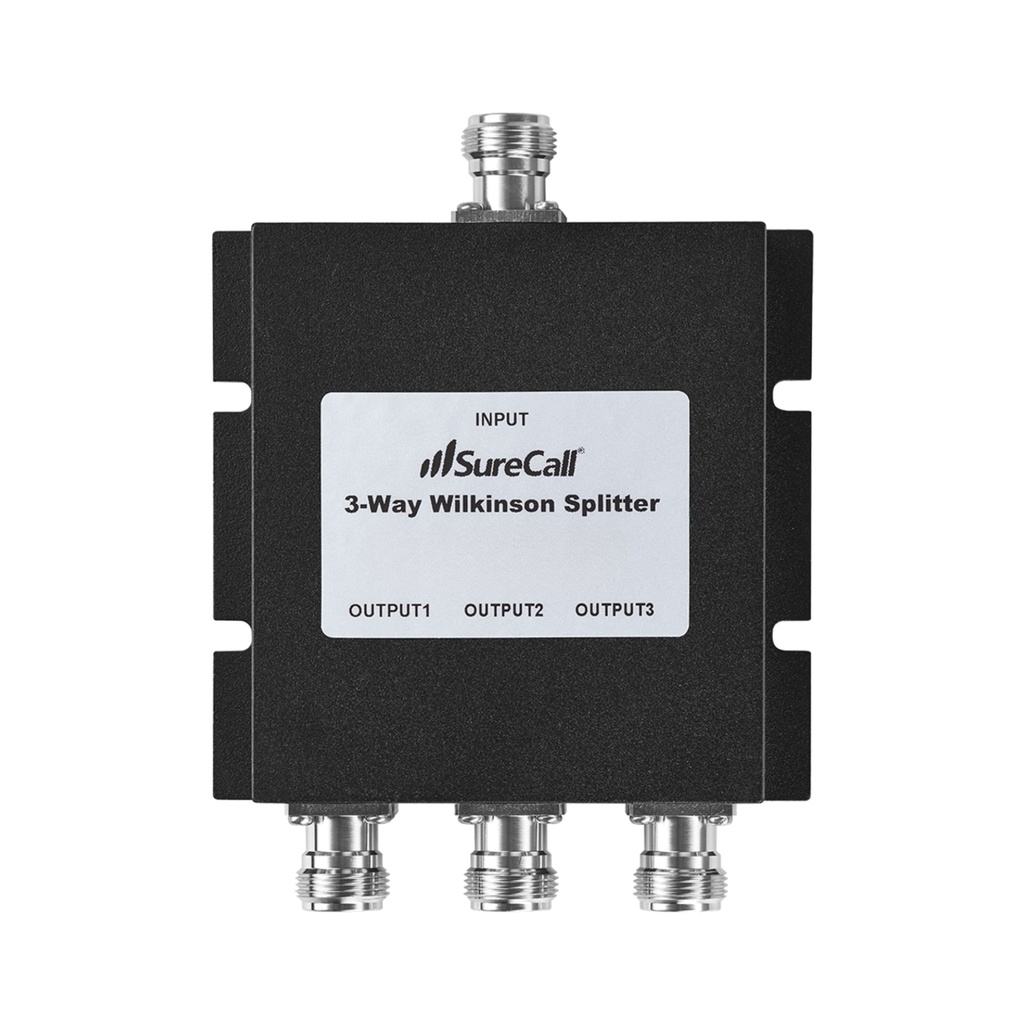

SureCall 50 Ohm 3-Way Power Splitter, -4.8 dB, 600-2700 MHz, N Female, Square Body.
This accessory is great for deploying multiple antennas all of which are approximately the same distance from the amplifier and are thus suitable for an even distribution of signal strength. All splitter models are fully compatible with all 2G, 3G, 4G, and 5G signal booster deployments in the 600 MHz to 2700 MHz range under all North American carriers.
Technical Information
Please contact us if you want more information.
Part Number | SCWS-3-5G |
| Frequency Range | 600-2700 MHz |
| Connector | N Female |
| Impedance | 50 ohm |
| Splitter Type | 3-Way |
| Distribution Loss | 4.8 dB |
| Insertion Loss | ≤ 1.00 dB |
| Isolation | ≥ 18 dB |
| Power Capacity | IN to OUT 50W / OUT to IN 2W |
| VSWR | ≤1.30:1 |
| Material | Copper / ternary alloy plated |
| Shell | Aluminum ADC12 / Black powder surface |
| Operating Temperature | -31°F to +149°F |
Operating Humidity | ≤ 95% |
Class of Protection | IP55 |
Dimensions | 5.2" x 4.0" x 0.8" |
