4 Way Splitter Wideband

https://www.expertmobile.ca/web/image/product.template/3678/image_1920?unique=613c71e

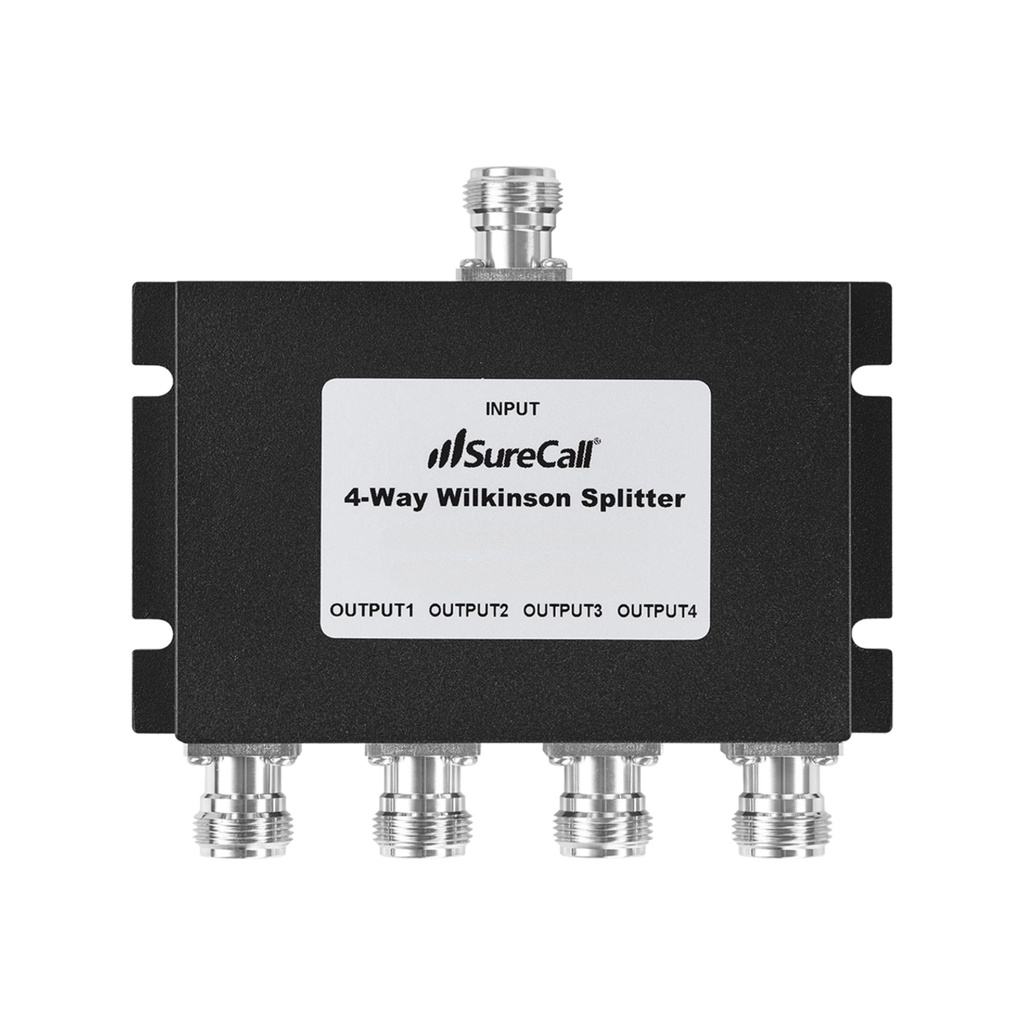

SurePower 50 Ohm 4-Way Power Splitter, -6 dB, 600-2700 MHz, N Female, Square Body

110.00 110.0 CAD 110.00

110.00

Not Available For Sale

    This combination does not exist.

    Find Dealers

    Terms and Conditions
    We collect payments in Canadian Dollars (CAD)
    30-day money-back guarantee
    Same-day shipping if ordered before 3 P.M. MT.

    Product Description

    SureCall 50 Ohm 4-Way Power Splitter, -6 dB, 600-2700 MHz, N Female, Square Body


    This accessory is great for deploying multiple antennas all of which are approximately the same distance from the amplifier and are thus suitable for an even distribution of signal strength. All splitter models are fully compatible with all 2G, 3G, 4G, and 5G signal booster deployments in the 600 MHz to 2700 MHz range under all North American carriers.

     Download data sheet

    Technical Information

    Please contact us if you want more information.

    Part Number

    SCWS-4-5G

    Frequency Range600-2700 MHz
    ConnectorN Female
    Impedance50 ohm
    Splitter Type4-Way
    Distribution Loss6.0 dB
    Insertion Loss≤ 1.50 dB
    Isolation≥ 20 dB
    Power CapacityIN to OUT 50W / OUT to IN 2W
    VSWR≤1.40:1
    MaterialCopper / ternary alloy plated
    ShellAluminum 6061 / Black powder surface
    Operating Temperature-31°F to +149°F

    Operating Humidity

    ≤ 95%

    Class of Protection

    IP55

    Dimensions

    4.7" x 4.3" x 0.9"
