Product Features
- 3G/4G/LTE Cellular Connectivity
- Wi-Fi / Bluetooth
- Video/Voice/Message Communication
-
IPS 2.45 inches, 240 x 432 Pixels
- Global Server Network
- Loud Audio Output
- GPS Support
- SOS Emergency Button
- 12 Volt Power for Mobile Use
- Ignition Start Feature.
Wiring the TM-7 Plus (2023) for Ignition Start
Each Inrico TM-7 Plus (2023) package includes a standard Inrico 3 Pin Power Cable, providing multiple wiring options for vehicle power connections. Explore the various wiring configurations available to best suit your needs.
Learn about all the different ways to wire your TM-7 Plus for optimal performance and convenience.
Powering by Wall Socket
Connecting the TM-7 Plus (2023) mobile PoC radio to a wall socket will also require the Inrico TM Series AC Power Adapter. This is perfect for when you need to use the radio outside vehicles.
Learn more and purchase if you need to use this radio in a building.

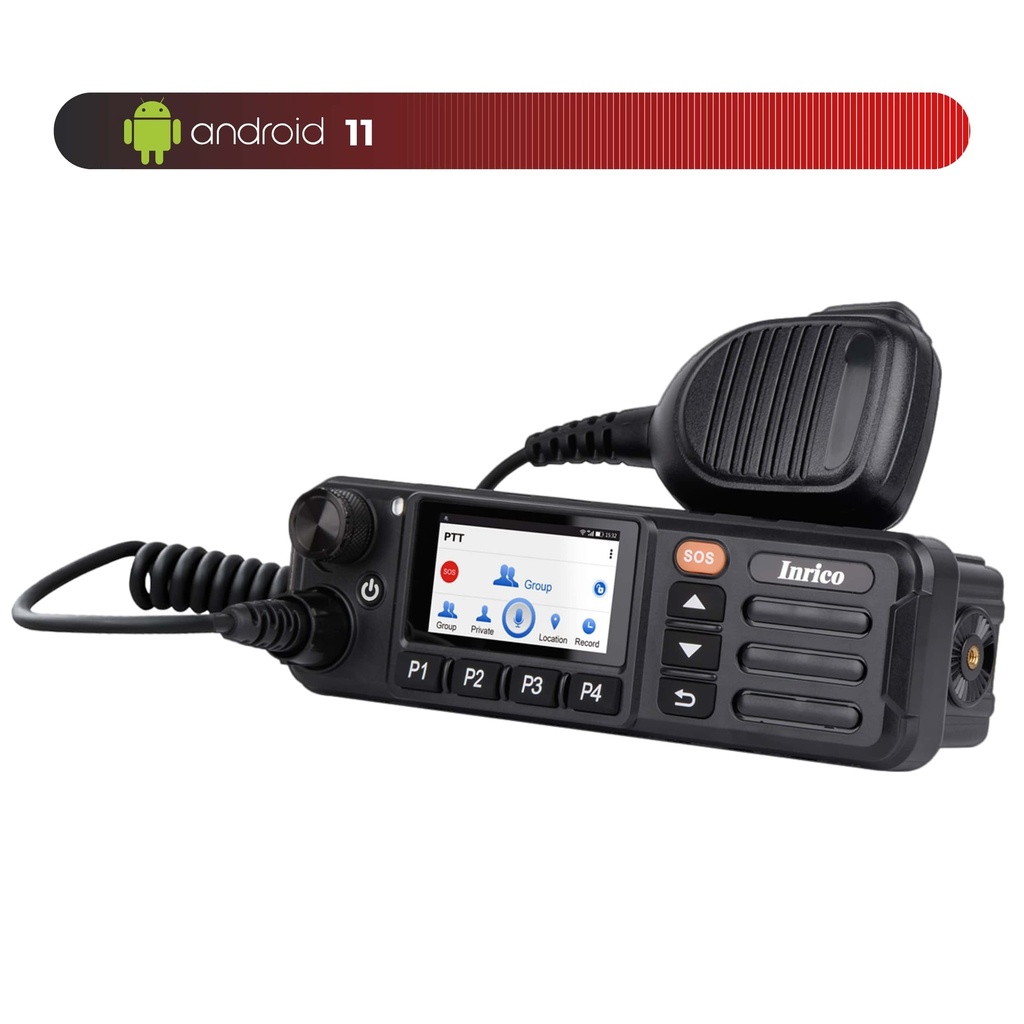

TM-7 Plus Package Contents
- TM7-Plus PoC Radio
- Mobile Microphone
- Cellular Bar Antenna
- GPS Antenna
- Radio Bracket and Mounting Screws
- Microphone Clip
Compatible PTT Apps
- iConvNet - Inrico's Recommended PTT App
- Zello - Tested
- Walkie Fleet
- EchoLink
- Real PTT
- PoC Star
Technical Specifications
PLEASE NOTE: Specifications are subject to change due to continuous improvements. Please contact us if you want more information.
Connectivity
| US and Canada Versions | GSM: B2/B3/B5 |
WCDMA: B1/B2/B5/B8 | |
| TD-SCDMA: B34/ B39 | |
| 4G-FDD: B2/ B4/ B5/ B7/ B12/ B13/ B17/ B28A/ B28B/ B66 | |
| 4G-TDD:B38/B40 | |
Wi-Fi | 802.11 a/b/g/ac/ k/v/r, 2.4GHz and 5GHz |
Bluetooth | BT4.0 & BLE5.0 |
| Navigation | GPS, GLONASS |
OS
Operating System | Android 11 |
Hardware
CPU | MTK6761, MTK6762 |
RAM | 2GB (RAM) + 16GB (ROM) |
SIM card slot | Dual Nano SIM card + TF card |
USB Port | Type-C |
| Interface | Aviation power connector / Hand Microphone Interface / GPS External Antenna Interface /Main Antenna External Interface / Earphone. |
| Screen | G + F Touch Screen |
| Screen Size | IPS 2.45" ，240*432 |
| Speaker | 3558 Runway Type Speaker, 5W |
| External Camera | Supported |
| External Speaker | Supported |
| Hand Microphone | Supported |
| Dimension | 188 x 58 x 87mm (with the knob) |
| Weight | ≈450g |
Working Temperature | -20°C ~ 60°C |
Storage Temperature | -30°C ~ 70°C |
Certification
| Ingress Protection | IP54 |
| Certification | CE/FCC/ROHS |
