Radio Features & Functions
- 3G/4G/LTE Cellular Connectivity
- Wi-Fi / Bluetooth / NFC Connectivity
- Video/Voice/Message Communication
- Global Server Network
- Loud Audio Output
- 4.0" OLED Touch Display
- External Camera
- GPS Support
- SOS Emergency Button
- 12 Volt Power for Mobile Use
- Android, Carplay
- IP54 Protection Level
Package Contents

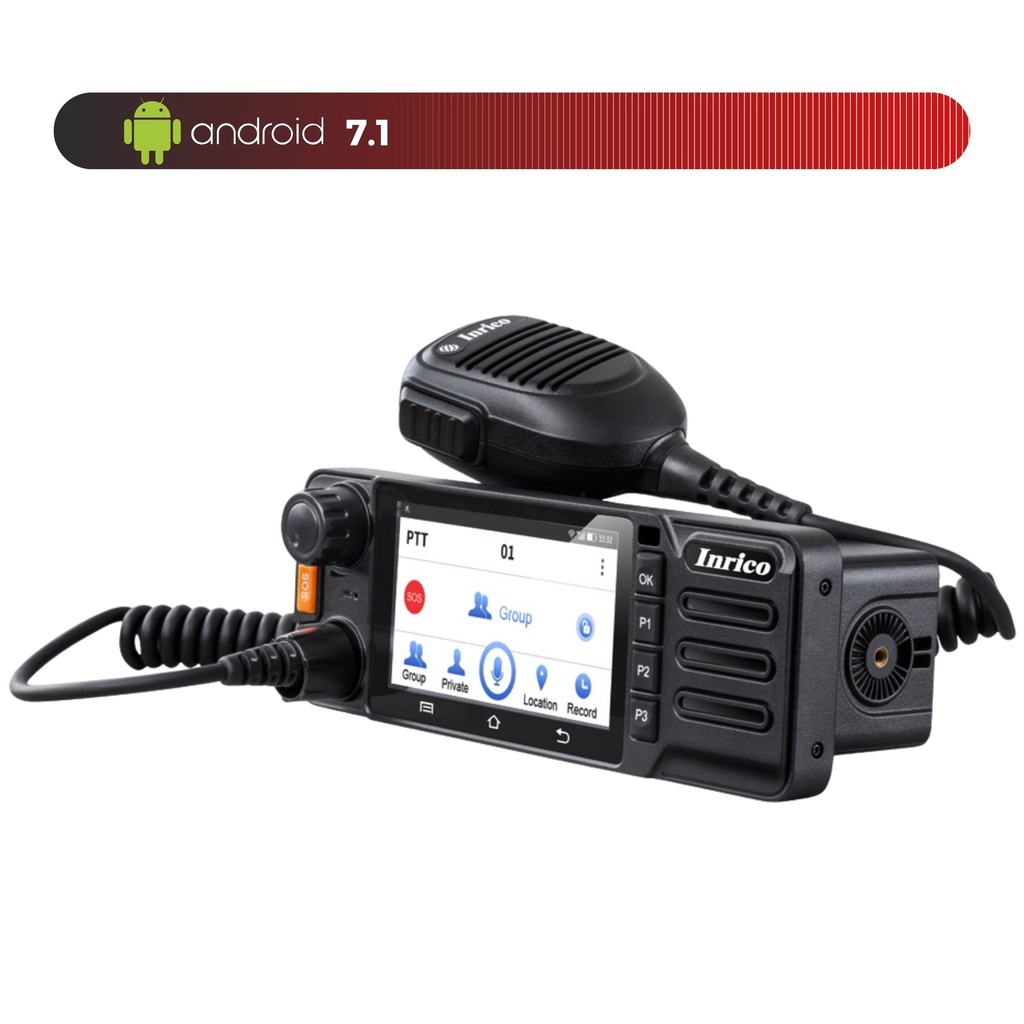

- TM7-Plus PoC Radio
- Mobile Microphone
- Cellular Bar Antenna
- GPS Antenna
- Radio Bracket and Mounting Screws
- Microphone Clip
Compatible PTT Apps
- iConvNet - Inrico's Recommended PTT App
- Zello
- Walkie Fleet
- EchoLink
- Real PTT
- PoC Star
Technical Specifications
PLEASE NOTE: Specifications are subject to change due to continuous improvements. Please contact us if you want more information.
Connectivity
| US and Canada Versions | GSM:B2/B3/B5/B8 |
| WCDMA:B2/B4/B5 | |
| FDD:B2/B3/B4/B5/B7/B8/B12/B17/B28a/B28b/B66 | |
| TDD:B38/B40 | |
| Wi-Fi | IEEE 802.11a/b/g/n（2.4G & 5G) |
| Bluetooth | BT4.0 |
| Navigation | GPS, GLONASS |
OS
| Operating System | Android 7.1 |
Hardware
| CPU | MT6739 |
| Memory | 1GB (RAM) + 8GB (ROM) |
| TF Card | Support, Micro SD/TF×1, up to 32GB |
| Card Slot | Dual Nano SIM Card + TF Card |
| Interface | Aviation headset microphone interface (without digital keyboard) / external camera (720p x 1080p) / RJ-45 (optional) / DB25 / GPS external antenna interface / main antenna external interface. |
| USB Ports | Micro USB 2.0 |
| Screen Size | 4.0" OLED screen, 60*640RGB. MIPI1lin |
| Speaker | 3558 Runway Type Speaker, 5W |
| Microphone | Main microphone |
| Speaker | 3558 Runway type speaker, power: 5W |
| Dimension | 195.1 × 67.3 × 88.6mm |
| Weight | ≈500g |
| Working Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
Certification
| Ingress Protection | IP54 |
| Certification | CE/FCC/ROHS |
