Radio Features & Functions
- 3G/4G/LTE Cellular Connectivity
- Wi-Fi / Bluetooth / NFC Connectivity
- Video/Voice/Message Communication
- Global Server Network
- Loud Audio Output
- 4.0" OLED Touch Display
- External Camera - supported
- GPS
- SOS Emergency Button
- 12 Volt Power for Mobile Use
- Android, Carplay
- IP54 Protection.
Package Contents

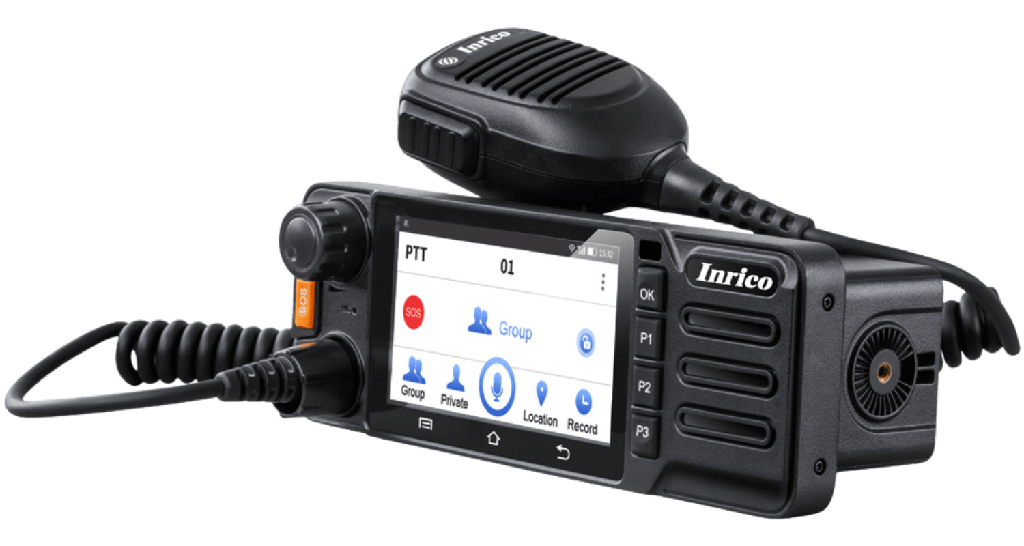

- TM-9 PoC Radio

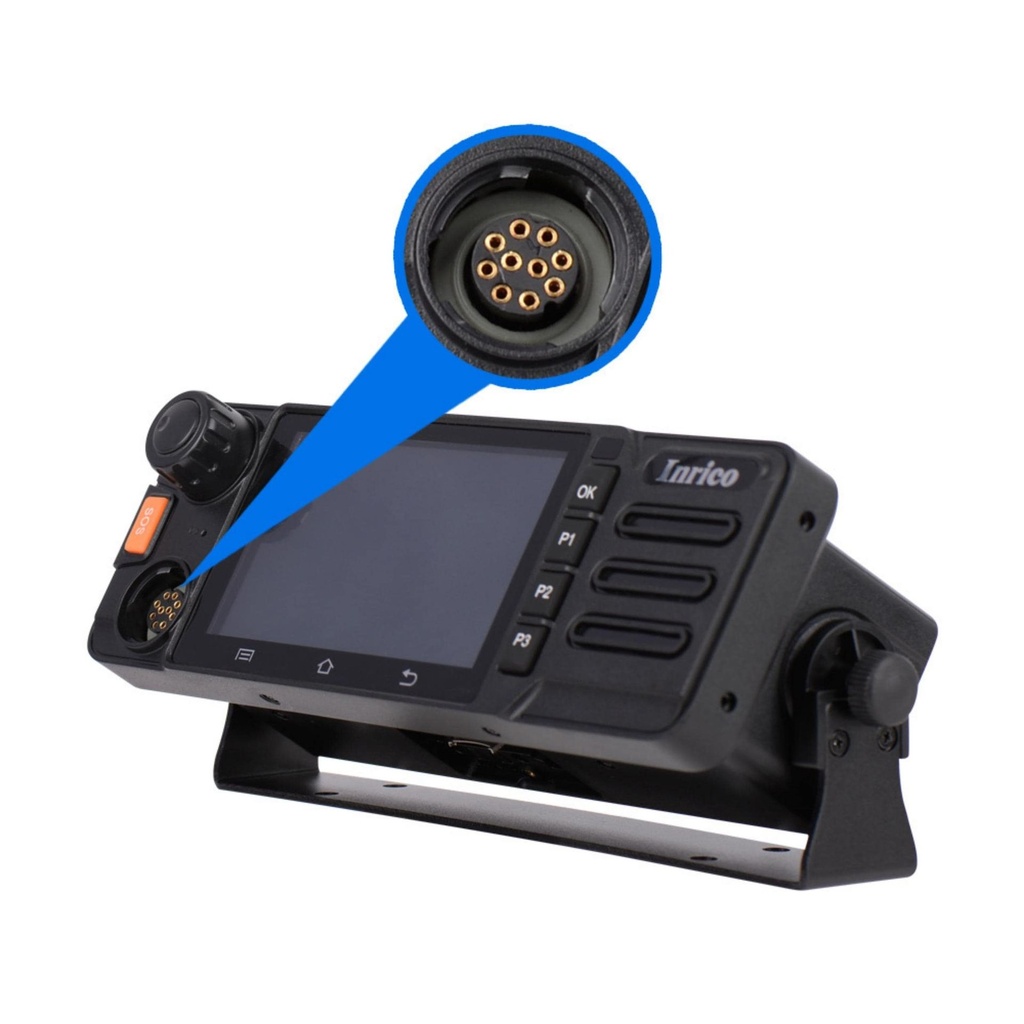

- Mobile Microphone (Circular Connector)
- Cellular Bar Antenna
- GPS Antenna
- Radio Bracket and Mounting Screws
- Microphone Clip.

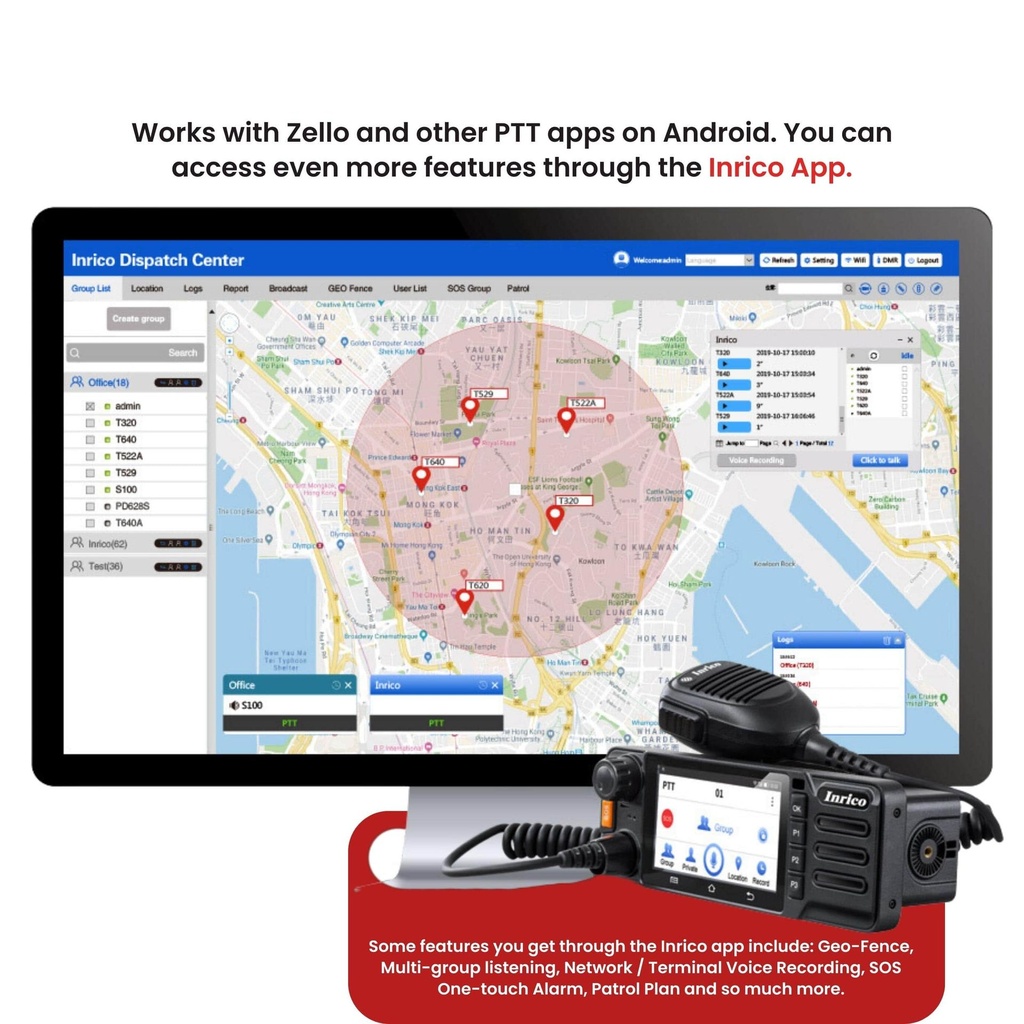

Compatible PTT Apps
iConvNet - Inrico's Recommended PTT App - is specifically designed for seamless integration with Inrico PoC radios. We provide full support for iConvNet to ensure the best experience. However, please note that we do not offer support for third-party PTT apps.
PLEASE NOTE: While other PTT apps can provide basic PTT functionality on this PoC radio, they may not unlock its full capabilities. For support with these third-party apps, please contact the respective app provider directly. We only offer support for iConvNet.
- Zello
- Walkie Fleet
- EchoLink
- Real PTT
- PoC Star
- And more...
Technical Specifications
PLEASE NOTE: Specifications are subject to change due to continuous improvements. Please contact us if you want more information.
Connectivity
| US and Canada Versions | GSM:B2/B3/B5/B8 |
| WCDMA:B2/B4/B5 | |
| FDD:B2/B3/B4/B5/B7/B8/B12/B17/B28a/B28b/B66 | |
| TDD:B38/B40 | |
| Wi-Fi | IEEE 802.11a/b/g/n（2.4G & 5G) |
| Bluetooth | BT4.0 |
| Navigation | GPS, GLONASS |
OS
| Operating System | Android 7.1 |
Hardware
| CPU | MT6739 |
| Memory | 1GB (RAM) + 8GB (ROM) |
| TF Card | Support, Micro SD/TF×1, up to 32GB |
| Card Slot | Dual Nano SIM Card + TF Card |
| Interface | Aviation headset microphone interface (without digital keyboard) / external camera (720p x 1080p) / RJ-45 (optional) / DB25 / GPS external antenna interface / main antenna external interface. |
| USB Ports | Micro USB 2.0 |
| Screen Size | 4.0" OLED screen, 60*640RGB. MIPI1lin |
| Speaker | 3558 Runway Type Speaker, 5W |
| Microphone | Main microphone |
| Speaker | 3558 Runway type speaker, power: 5W |
| Dimension | 195.1 × 67.3 × 88.6mm |
| Weight | ≈500g |
| Working Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
Certification
| Ingress Protection | IP54 |
| Certification | CE/FCC/ROHS |
