Product Description & Key Features

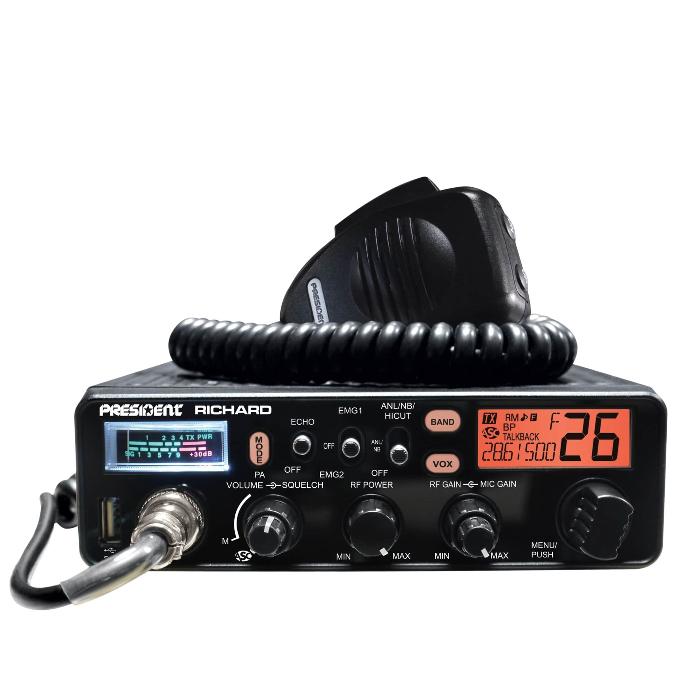

Introducing RICHARD - Compact Yet Packed with Features. Equipped with a Front-Mounted USB Charging Port, Multi-Color Display, and a Channel Changing Microphone. The PRESIDENT Richard offers a blend of affordability and high performance with its 50-watt radio capability, Echo, talkback feature, and dynamic multi-color display. Why settle for a costlier, inferior radio when the Richard is tailor-made for your Freightliner Cascadia, Kenworth, Peterbilt, or International Truck?
- Compact case size for easy integration
- 50 Watts PeP (Bird), 30 Watts RMS (Dosy)
- Built-in Echo and Talkback
- Selectable Multi-color display
| Power Supply: | 13.8 V |
| AM: |
|
| FM: |
|
Channel Selector:
| Rotary |
| VFO Mode: |
|
Volume:
| Volume adjustment and ON/OFF |
| RF Power: |
|
Squelch:
| Manual squelch
|
ASC:
|
|
Display:
| LCD Multifunction |
| Frequency Display: |
|
S-Meter:
| Vu-Meter |
Public Address:
|
|
Talkback:
|
|
| Vox: |
|
| Automatic SWR Meter: |
|
| Tone: |
|
Filter ANL:
|
|
Filter NB:
|
|
| Filter HI-CUT: |
|
| RF-Gain: |
|
| Mike-Gain |
|
| Scan: |
|
| Dimmer: |
|
| F / Menu Function Key |
|
Beep Function:
|
|
Roger Beep:
|
|
| SWR (Power Reading/SWR) |
|
Preset Channel:
| EMG 1 & 2 |
Microphone Plug:
| Front (6 pins) |
| External Vox Microphone Jack: |
|
External Loudspeaker Jack:
|
|
Size (W x D x H):
| 6,69 x 6.29 x 2.05 inches / 170 x 160 x 52 mm
|
| DIN Size: |
|
Weight:
| ± 2.43 lbs / 1.1 kg
|
General| Modulation Modes: | AM / FM
|
| Frequency Ranges: | Continuous scanning of 28.000 Mhz to 29.700 Mhz
|
Antenna Impedance:
| 50 ohms
|
| Power Supply: | 13.8 V
|
Size (W x D x H):
| 6,69 x 6.29 x 2.05 inches / 170 x 160 x 52 mm
|
| DIN Size: |
|
| Weight: | ± 2.43 lbs / 1.1 kg
|
Accessories Supplied:
| Power cord with fuse, 1 mounting bracket with fixing screws, Ultra light electret microphone with support
|
Transmission
| Frequency Allowance: | +/- 300 Hz
|
| Carrier Power: | 13 W AM (~50 W PEP) / 40 W FM
|
| Transmission Interference: | Inferior to 4 nW (- 54 dBm)
|
Audio Response:
| 300 Hz to 3 KHz in AM/FM
|
| Emitted Power in the Adj. Channel: | inferior to 20 μW
|
Microphone Sensitivity:
| 3 mV
|
| Drain: | 7 A (with modulation)
|
Modulated signal distortion:
| 1.8 %
|
Reception| Max. Sensitivity at 20 dB Sinad: | 0,7 μV -110 dBm (AM) / 0,35 μV -116 dBm (FM)
|
| Frequency Response: | 300 Hz to 3 kHz in AM/FM
|
| Adjacent Channel Selectivity: | 60 dB
|
Maximum Audio Power:
| 3 W
|
| Squelch Sensitivity: | mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
|
Frequency Image Rejection Rate:
| 60 dB
|
| Intermediate Frequency Rejection. Rate: | 70 dB
|
Drain:
| 500 mA max
|
