Product Description & Key Features

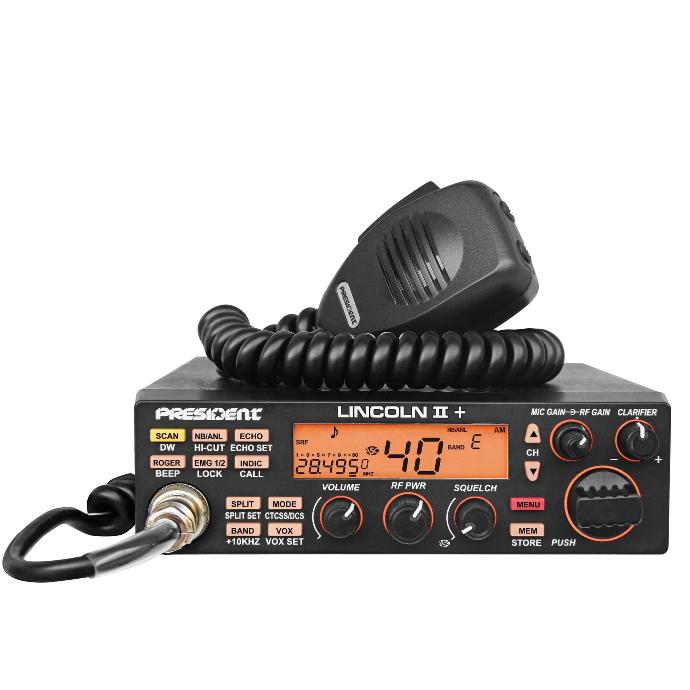

This digital amateur HAM radio builds upon the legacy of its predecessor, the original President Lincolns, with modern enhancements. Smaller in size and adorned with the ability to switch background display colors (amber, blue, or green), it adapts to your preferences seamlessly. An added Automatic Squelch Control (ASC) suppresses background noise when the squelch control is fully lowered; pushing the control upwards disables ASC, granting manual squelch adjustment.
Key Features Include:
- Modes: AM/FM/LSB/USB/CW
- VFO Mode: Continuously scan from 24.890 MHz to 24.990 MHz and 28.000 MHz to 29.700 MHz.
- Manual Squelch and ASC: Experience Automatic Squelch Control that suppresses unwanted noise.
- Multi-color Display: Choose between Amber, Green, and Blue display colors.
- Filters: Benefit from ANL filter, NB, and HI-CUT that eliminate undesirable noise.
- Channel and Memory Scan: Effortlessly scan frequencies for activity.
- 6 Memory Channels: Store up to 6 channels for quick access.
- Repeater Tones: Utilize CTCSS (38 tones) and DCS (104 codes) for repeater communication.
- Dimmer: Adjust the backlight brightness as needed.
- Modes: Enjoy AM/FM/LSB/USB/CW and PA modes.
- Dual Watch: Monitor 2 frequencies simultaneously.
- SWR Protection and Voltage Protection: Safeguard your radio from antenna system SWR issues and high voltage scenarios.
Latest Features Include:
- Enhanced Echo with Fully Adjustable Delay
- Increased Power Output (50 Watts PeP)
- 6-Pin Wireless Microphone Compatibility
- Expanded Frequency Coverage, Now Including 12 Meters!
| Power Supply: | 13.8 V |
| AM: |
|
| FM: |
|
| SSB: |
|
| CW: |
|
Channel Selector:
| Rotary; Up/ Down |
| VFO Mode: |
|
Volume:
| Volume adjustment and ON/OFF |
| RF Power |
|
Squelch:
| Manual squelch
|
ASC:
|
|
Display:
| LCD Multifunction |
| Frequencies Display: |
|
S-Meter:
| Digital |
Public Address:
|
|
| Vox: |
|
Talkback:
|
|
Filter ANL:
|
|
Filter NB:
|
|
| Filter HI-CUT: |
|
| RF-Gain: |
|
| Mike-Gain: |
|
| Clarifier: |
|
| Scan: |
|
| Memorie(s): |
|
| Dimmer: |
|
| F / Menu Function Key: |
|
Beep Function:
|
|
Roger Beep:
|
|
| Dual Watch: |
|
| Key Locking: |
|
| SWR (Power Reading / SWR) |
|
Preset Channel:
| EMG 1 / 2 |
| CTCSS | 38 Tones |
| DSC: | 104 Codes |
Microphone Plug:
| Front (6 pins) |
| External Vox Microphone Jack: |
|
External Loudspeaker Jack:
|
|
Size (W x D x H):
| 6.69 x 9.84 x 2.05 inches / 170 x 250 x 52 mm
|
| DIN Size: |
|
Weight:
| ~ 3.09 lbs / ~ 1.4 kg
|
General| Modulation Modes: | AM / FM / LSB / USB / CW
|
| Frequency Ranges: | Continuous scanning of 24.890 Mhz to 24.990 Mhz and of 28.000 Mhz to 29.700 Mhz
|
Antenna Impedance:
| 50 ohms
|
| Power Supply: | 13.8 V
|
Size (W x D x H):
| 6.69 x 9.84 x 2.05 inches / 170 x 250 x 52 mm
|
| DIN Size: |
|
| Weight: | ~ 3.09 lbs / ~ 1.4 kg
|
Accessories Supplied:
| Power cord with fuse, 1 microphone and its hanger, 1 mounting bracket with fixing screws
|
Transmission
| Frequency Allowance: | +/- 300 Hz
|
| Carrier Power: | 50 W AM (PEP) / 35 W FM / 35W USB-LSB (PEP) / 12W CW
|
| Transmission Interference: | inferior to -50 dBc
|
Audio Response:
| 300 Hz to 3 KHz
|
| Emitted Power in the Adj. Channel: | inferior to 20 μW
|
Microphone Sensitivity:
| 3 mV
|
| Drain: | 6 A (with modulation)
|
Modulated signal distortion:
| 1.8 %
|
Reception| Max. Sensitivity at 20 dB Sinad: | 0,5 μV -110 dBm (AM) / 0,35 μV -116 dBm (FM) / 0.28µV-118 dBm (USB/LSB/CW)
|
| Frequency Response: | 300 Hz to 3 kHz
|
| Adjacent Channel Selectivity: | 60 dB
|
Maximum Audio Power:
| 3 W
|
| Squelch Sensitivity: | minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm
|
Frequency Image Rejection Rate:
| 60 dB
|
| Intermediate Frequency Rejection. Rate: | 70 dB
|
Drain:
| 400 mA nominal / 600 mA maximum
|
CTCSS Tone List
| N° |
Freq. (Hz) |
N° |
Freq. (Hz) |
N° |
Freq. (Hz) |
| 00 - oF |
OFF |
13 |
103.5 |
26 |
162.2 |
| 1 |
67 |
14 |
107.2 |
27 |
167.9 |
| 2 |
71.9 |
15 |
110.9 |
28 |
173.8 |
| 3 |
74.4 |
16 |
114.8 |
29 |
179.9 |
| 4 |
77 |
17 |
118.8 |
30 |
186.2 |
| 5 |
79.7 |
18 |
123 |
31 |
192.8 |
| 6 |
82.5 |
19 |
127.3 |
32 |
203.5 |
| 7 |
85.4 |
20 |
131.8 |
33 |
210.7 |
| 8 |
88.5 |
21 |
136.5 |
34 |
218.1 |
| 9 |
91.5 |
22 |
141.3 |
35 |
225.7 |
| 10 |
94.8 |
23 |
146.2 |
36 |
233.6 |
| 11 |
97.4 |
24 |
151.4 |
37 |
241.8 |
| 12 |
100 |
25 |
156.7 |
38 |
250.3 |
DCS Code List
| N° |
DCS (Octal) |
N° |
DCS (Octal) |
N° |
DCS (Octal) |
N° |
DCS (Octal) |
| 1 |
23 |
27 |
152 |
53 |
311 |
79 |
466 |
| 2 |
25 |
28 |
155 |
54 |
315 |
80 |
503 |
| 3 |
26 |
29 |
156 |
55 |
325 |
81 |
506 |
| 4 |
31 |
30 |
162 |
56 |
331 |
82 |
516 |
| 5 |
32 |
31 |
165 |
57 |
332 |
83 |
523 |
| 6 |
36 |
32 |
172 |
58 |
343 |
84 |
526 |
| 7 |
43 |
33 |
174 |
59 |
346 |
85 |
532 |
| 8 |
47 |
34 |
205 |
60 |
351 |
86 |
546 |
| 9 |
51 |
35 |
212 |
61 |
356 |
87 |
565 |
| 10 |
53 |
36 |
223 |
62 |
364 |
88 |
606 |
| 11 |
54 |
37 |
225 |
63 |
365 |
89 |
612 |
| 12 |
65 |
38 |
226 |
64 |
371 |
90 |
624 |
| 13 |
71 |
39 |
243 |
65 |
411 |
91 |
627 |
| 14 |
72 |
40 |
244 |
66 |
412 |
92 |
631 |
| 15 |
73 |
41 |
245 |
67 |
413 |
93 |
632 |
| 16 |
74 |
42 |
246 |
68 |
423 |
94 |
654 |
| 17 |
114 |
43 |
251 |
69 |
431 |
95 |
662 |
| 18 |
115 |
44 |
252 |
70 |
432 |
96 |
664 |
| 19 |
116 |
45 |
255 |
71 |
445 |
97 |
703 |
| 20 |
122 |
46 |
261 |
72 |
446 |
98 |
712 |
| 21 |
125 |
47 |
263 |
73 |
452 |
99 |
723 |
| 22 |
131 |
48 |
265 |
74 |
454 |
100 |
731 |
| 23 |
132 |
49 |
266 |
75 |
455 |
101 |
732 |
| 24 |
134 |
50 |
271 |
76 |
462 |
102 |
734 |
| 25 |
143 |
51 |
274 |
77 |
464 |
103 |
743 |
| 26 |
145 |
52 |
306 |
78 |
465 |
104 |
754 |
