Product Description & Key Features

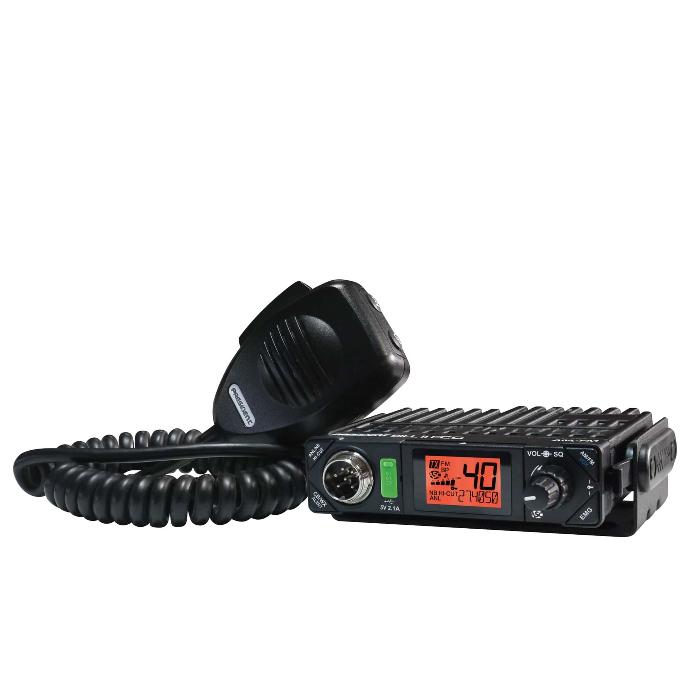

Meet the BILL II - It's unbelievably small, and guess what? It now comes with FM! You've got a weather radio that gives alerts, a microphone for easy channel changes, and a handy front USB port (2.1A) to charge your gadgets. And when you add the NewYork Antenna & Lighter Plug, you've got the perfect CB setup to take anywhere! Check out some of its key features below:
- The smallest FM CB out there
- Quick-release mounting bracket
- Weather channel with alerts
- 7-color user selectable display.
| Power Supply: | 13.8 V |
Number of Channels:
| 40 |
| AM: |
|
| FM: |
|
Channel Selector:
| up/ down |
| Number of Weather Channels: | 7 |
| Weather Alert: |
|
Volume:
| Volume adjustment and ON/OFF |
Squelch:
| Manual squelch
|
ASC:
|
|
Display:
| LCD Multifunction |
| Frequencies Display |
|
S-Meter:
| Digital |
| Vox |
|
Filter ANL:
|
|
Filter NB:
|
|
| Filter HI-CUT: |
|
| Scan + Scan Skip: |
|
Beep Function:
|
|
Roger Beep:
|
|
| Key Locking |
|
Preset Channel:
| EMG 1 & 2 |
Microphone Plug:
| Front (6 pins) |
External Loudspeaker Jack:
|
|
Size (W x D x H):
| 4.02 (W) x 3.94 (D) x 0.98 (H) inches / 102 (W) x 100 (D) x 25 (H) mm
|
Weight:
| ± 0.705 lbs / ± 0.320 kg
|
General| Number of Channels: | 40
|
| Number of Weather Channels: | 7 |
| Weather Alert |
|
| Modulation Modes: | AM/FM
|
| Frequency Ranges: | from 26.965 MHz to 27.405 MHz
|
| Weather Channels | from 162.400 MHz to 162.550 MHz
|
Antenna Impedance:
| 50 ohms
|
| Power Supply: | 13.8 V
|
Size (W x D x H):
| 4.02 (W) x 3.94 (D) x 0.98 (H) inches / 102 (W) x 100 (D) x 25 (H) mm
|
| Weight: | ± 0.705 lbs / ± 0.320 kg
|
Accessories Supplied:
| Ultra light electret microphone with support, mounting cradle, screws
|
Transmission
| Frequency Allowance: | +/- 200 Hz
|
| Carrier Power: | 4 W AM / 4 W FM
|
| Transmission Interference: | inferior to 4 nW (- 54 dBm)
|
Audio Response:
| 300 Hz to 3 KHz
|
| Emitted Power in the Adj. Channel: | inferior to 20 μW
|
Microphone Sensitivity:
| 5,5 mV (elec.) / 2,2 mV (dyn.)
|
| Drain: | 2 A
|
Modulated signal distortion:
| 2%
|
Reception| Max. Sensitivity at 20 dB Sinad: |
0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM |
| Frequency Response: | 300 Hz to 3 kHz
|
| Adjacent Channel Selectivity: | 60 dB
|
Maximum Audio Power:
| 2.5 W
|
| Squelch Sensitivity: | minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm
|
Frequency Image Rejection Rate:
| 60 dB
|
| Intermediate Frequency Rejection. Rate: | 70 dB
|
Drain:
| 150 ~ 700 mA
|
