Product Description & Key Features

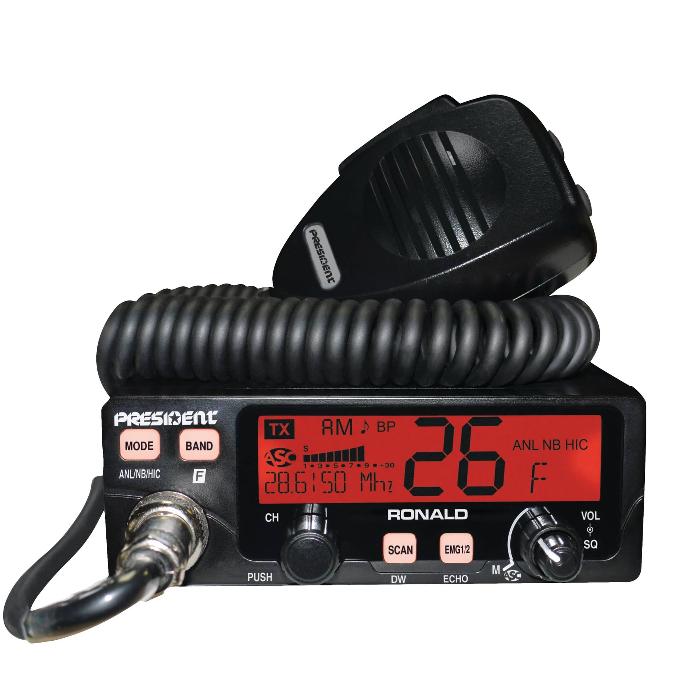

Experience the full package in a 10-meter radio, all while keeping size and price in check. The PRESIDENT Ronald, a super compact 10-meter radio, delivers an impressive 50 watts PeP modulation in a unit that measures less than 5 inches wide! This radio offers unbeatable features and performance at an incredibly affordable price point. Unlike other brands, which charge more for larger radios lacking the protection and support that President Electronics ensures. With a solid warranty, impressive features, and outstanding performance, this radio is an unbeatable value. Check out some of it's key highlights below:
- 50 Watts PeP (Bird), 28 Watts RMS (Dosy)
- Ultra-compact design, less than 5" wide and just 1.77" tall
- Large, color-selectable display for effortless viewing
- Integrated SWR meter for enhanced convenience
| Power Supply: | 13.8 V |
| AM: |
|
| FM: |
|
Channel Selector:
| Rotary |
| VFO Mode: |
|
Volume:
| Volume Adjustment and ON/OFF |
| RF Power: |
|
Squelch:
| Manual squelch
|
ASC:
|
|
Display:
| LCD Multifunction |
| Frequencies Display: |
|
S-Meter:
| Digital |
Public Address:
|
|
Talkback:
|
|
Filter ANL:
|
|
Filter NB:
|
|
| Filter HI-CUT: |
|
| RF Gain: |
|
| Mike Gain: |
|
| Scan: |
|
| F / Menu Function Key: |
|
Beep Function:
|
|
Roger Beep:
|
|
| Dual Watch: |
|
| SWR (Power Reading / SWR): |
|
Preset Channel:
| EMG 1/2 |
Microphone Plug:
| Front (6 pins) |
External Loudspeaker Jack:
|
|
Size (W x D x H):
| 4.92 (W) x 6.89 (D) x 1.77 (H) inches / 125 (W) x 175 (D) x 45 (H) cm
|
Weight:
| ~ 1.98 lbs / 0.9 kg |
General| Modulation Modes: | AM/FM
|
| Frequency Ranges: | Continuous scanning of 28.000 Mhz to 29.700 Mhz
|
Antenna Impedance:
| 50 ohms
|
| Power Supply: | 13.8 V
|
Size (W x D x H):
| 4.92 (W) x 6.89 (D) x 1.77 (H) inches / 125 (W) x 175 (D) x 45 (H) cm
|
| Weight: | 1.98 lbs / 0.9 kg
|
Accessories Supplied:
| Power cord with fuse, 1 mounting bracket with fixing screws, Ultra light electret microphone with support
|
Transmission
| Frequency Allowance: | +/- 300 Hz
|
| Carrier Power: | 13 W AM (50 W PEP)/ 35 W FM
|
| Transmission Interference: | inferior to -50 dBc
|
Audio Response:
| 300 Hz to 3 KHz in AM/FM
|
| Emitted Power in the Adj. Channel: | inferior to 20 μW
|
Microphone Sensitivity:
| 3.0 mV
|
| Drain: | 7 A max. (with modulation)
|
Modulated Signal Distortion:
| 2%
|
Reception| Max. Sensitivity at 20 dB Sinad: | 0,7 μV -110 dBm (AM) / 0,35 μV -116 dBm (FM)
|
| Frequency Response: | 300 Hz to 3 kHz in AM/FM
|
| Adjacent Channel Selectivity: | 60 dB
|
Maximum Audio Power:
| 3 W
|
| Squelch Sensitivity: | minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm
|
Frequency Image Rejection Rate:
| 60 dB
|
| Intermediate Frequency Rejection. Rate: | 70 dB
|
Drain:
| 500 mA maximum
|
