Product Description & Key Features

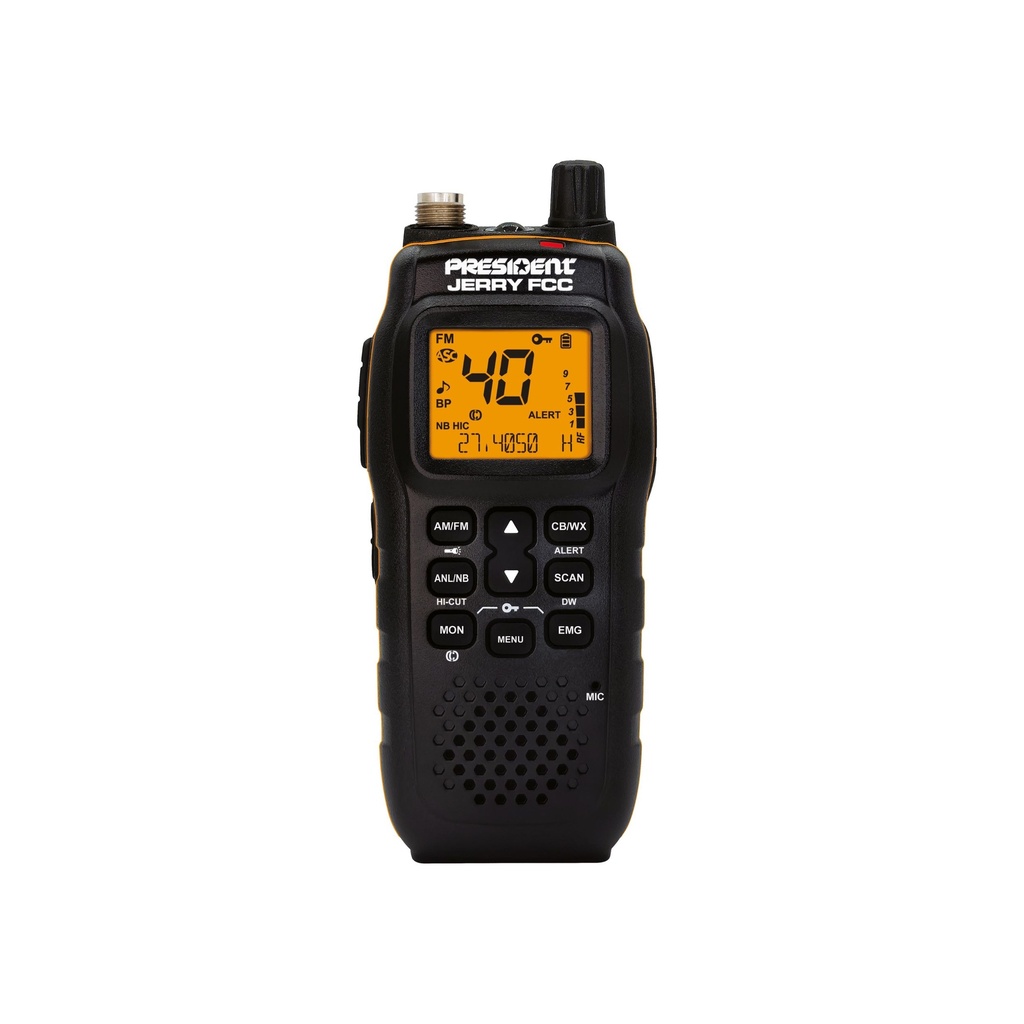

With the Jerry FCC, President Electronics provides a versatile radio solution that adapts to your needs. Whether you require a walkie-talkie or a mobile radio with an external antenna, the Jerry's dual-function design has you covered. Simply attach the 12V power adapter to connect it to an external antenna mounted on your vehicle. The Jerry offers AM and FM modes, along with the ability to receive NOAA weather channels and alerts. To ensure the clearest reception and transmission, it includes features such as Noise Blanker, Automatic Noise Limiter, and a hi-cut filter. Additionally, the VOX function enables hands-free transmissions, enhancing convenience and safety. Check out some key features of the PRESIDENT Jerry Handheld CB Radio below
- AM / FM modes
- Use as a handheld or in a vehicle
- NOAA Weather Scan & Alert
| Power Supply: | 7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)
|
Number of Channels:
| 40 |
| AM: |
|
| FM: |
|
Channel Selector:
| up/ down |
Number of Weather Channels:
| 7 |
| Weather Alert: |
|
Volume:
| Volume adjustment and ON/OFF |
RF Power:
|
|
Squelch:
| Manual squelch
|
ASC:
|
|
Display:
| LCD Multifunction |
Frequencies Display
|
|
S-Meter:
| Digital |
Filter ANL:
|
|
Filter NB:
|
|
| Filter HI-CUT |
|
Scan
|
|
F / Menu Function Key
|
|
Beep Function:
|
|
Roger Beep:
|
|
| Dual Watch |
|
| Key Locking |
|
Preset Channel:
| EMG
|
External Vox Microphone Jack:
|
|
External Loudspeaker Jack:
|
|
Size (W x D x H):
| 152 (H) x 66,5 (L) x 37 (P) mm 5.98 (H) x 2.62 (L) x 1.46 (P) inches
|
Weight:
| 305g / 0.67lb with battery pack
|
General| Number of Channels: | 40
|
| Number of Weather Channels: | 7 |
| Weather Alert: |
|
| Modulation Modes: | AM/FM
|
| Frequency Ranges: | from 26.965 MHz to 27.405 MHz
|
| Weather Channels | from 162.400 MHz to 162.550 MHz
|
Antenna Impedance:
| 50 ohms
|
| Power Supply: | 7.4 V (Handheld configuration) / 13.2 V (Mobile configuration)
|
Size (W x D x H):
| 152 (H) x 66,5 (L) x 37 (P) mm 5.98 (H) x 2.62 (L) x 1.46 (P) inches
|
| Weight: | 305 g / 0.67 lb with battery pack
|
| Package Contents: | Jerry FCC Radio; Flexible Antenna S-20; Mobile Charging Module (Adapter with CB antenna connector and cigarette lighter plug); Fuse; Battery Pack.
|
Transmission
| Frequency Allowance: | +/- 200 Hz
|
| Carrier Power: | 4 W AM / 4 W FM
|
| Transmission Interference: | inferior to 4 nW (- 54 dBm)
|
Audio Response:
| 300 Hz to 2,5 kHz
|
| Emitted Power in the Adj. Channel: | inferior to 20 μW
|
Microphone Sensitivity:
| 6 mV
|
| Drain: | 1,8 A (with modulation power Hi)
|
Modulated Signal Distortion:
| 2%
|
Reception| Max. Sensitivity at 20 dB Sinad: |
AM : 0,5 μV - 113 dBm FM: 0.3 μV - 116 dBm WX : 0,3 μV - 116 dBm |
| Frequency Response: | 300 Hz to 2.5 kHz
|
| Adjacent Channel Selectivity: | 60 dB
|
Maximum Audio Power:
| 1 W
|
| Squelch Sensitivity: | min. 0,2 μV - 120 dBm / max. 1 mV - 47 dBm
|
Frequency Image Rejection Rate:
| 60 dB
|
| Intermediate Frequency Rejection. Rate: | 70 dB
|
Drain:
| Menu ECO
|
