Product Description

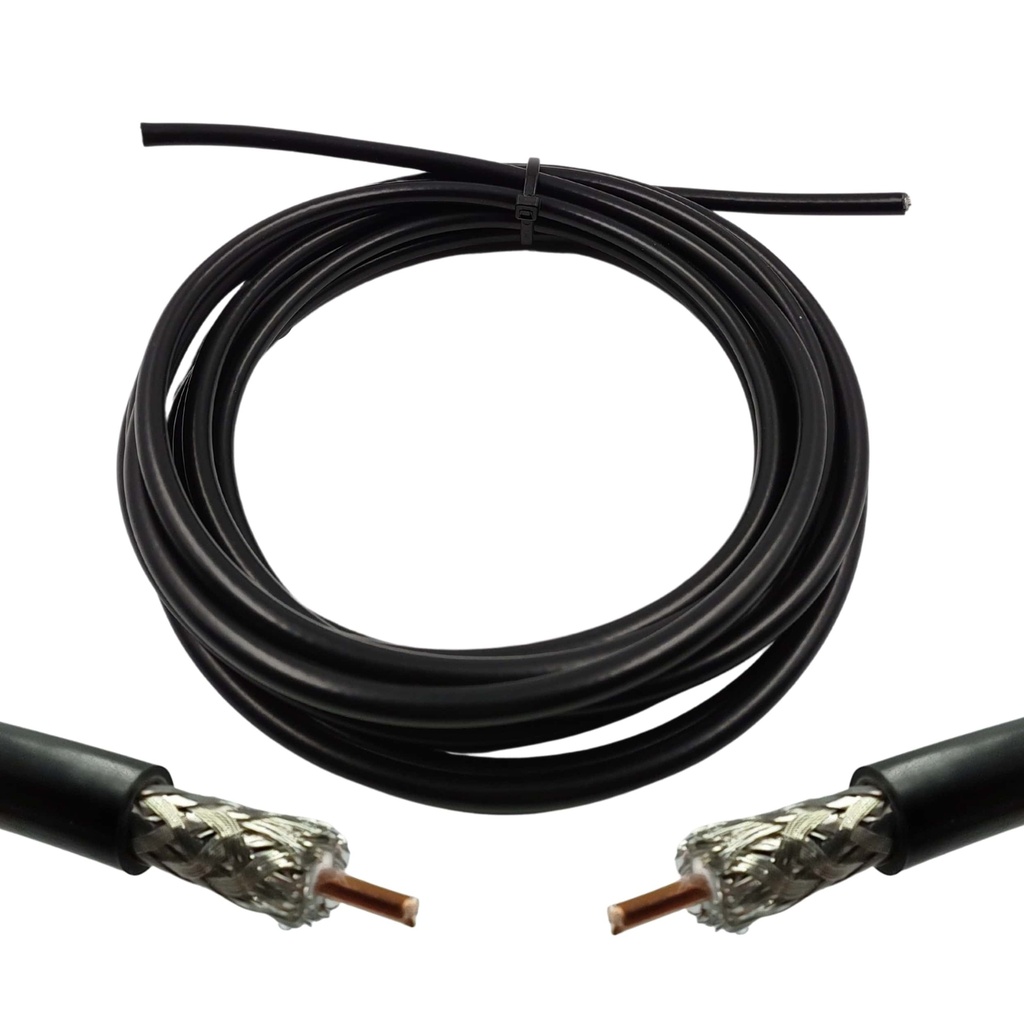

Low Loss LMR240 equivalent is designed to deliver high performance with minimal loss. With a durable Polyethylene jacket, these cables are suited for indoor and outdoor installations. This cable is light and flexible and is acceptable for short runs of 15m/50ft or extensions from a larger cable.
- Priced Per Foot
- Cable Type: LMR240 Equivalent
- Impedance: 50 ohm
- Center Conductor: Bare Copper
- Jacket: Polyethylene
- Outer Diameter: .240 inch
- Indoor/Outdoor Rated
- Attenuation @ 900 MHz/100 ft: 7.6dB/100ft
LMR & LMR-400® is a registered trademark of Times Microwave Systems
Technical Information
Please contact us if you want more information.
| Outer Jacket Diameter: | 6.1mm |
| Metal Braid: | 4.5mm |
| Outer Conductor: | 3.9mm |
| Dielectric: | 3.8mm |
| Inner Conductor: | 1.5mm |
