Product Description

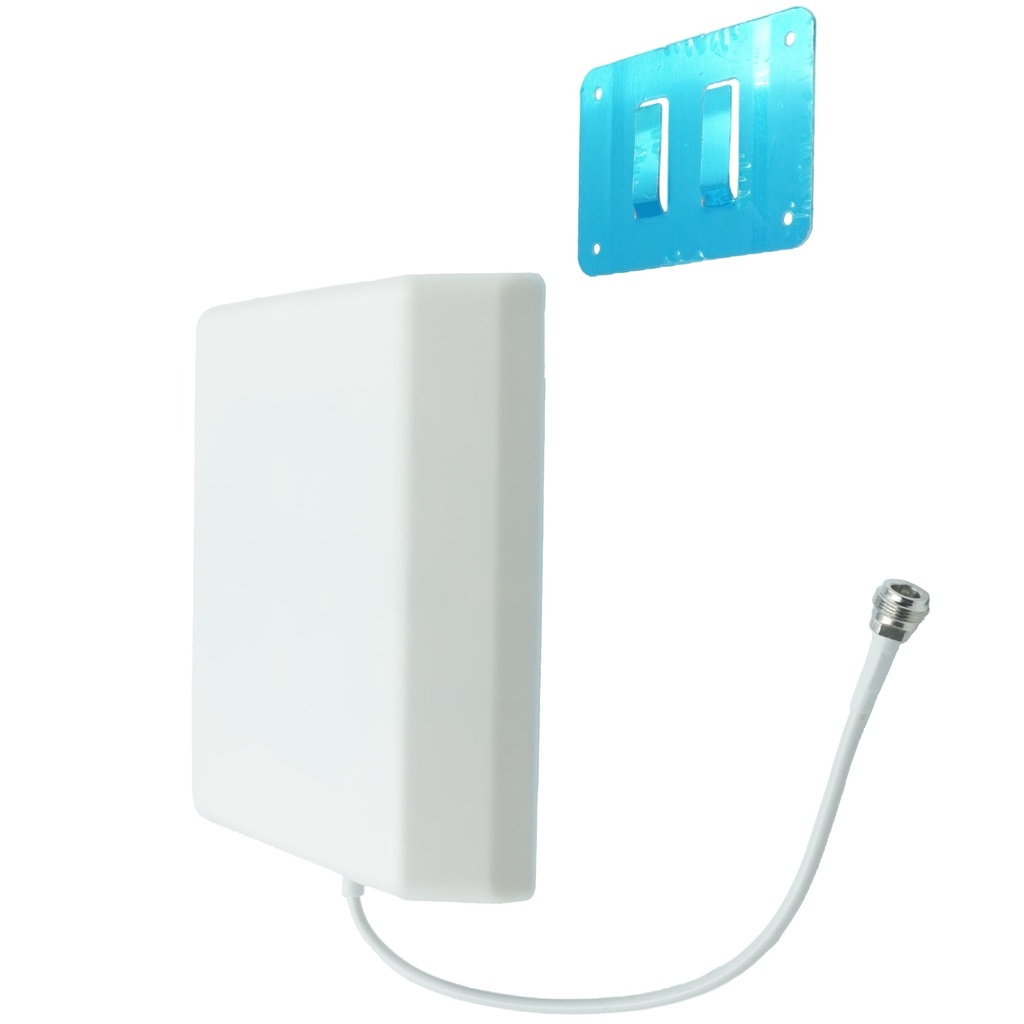

The Wirox Indoor Wall Mount Panel Antenna transmits and receives signals directionally and is designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. Supports UWB frequencies 617-2700 MHz.
This is a high-quality, Low-PIM, wideband, and directional antenna designed for indoor use. It is the ideal solution for boosting cellular signals and is a must-have accessory for your 50 ohm cell phone signal booster system. With its impressive boost gain of up to 8 dB at the endpoint, it ensures enhanced signal strength and performance.
Passive Intermodulation (PIM) is a crucial factor affecting cellular reception and bandwidth. The Wirox Indoor Panel Antenna excels in delivering low PIM, resulting in stronger signals and increased bandwidth for improved user experience. By choosing this antenna from Wirox, you can enjoy better signal quality and reduced signal loss, making it a worthwhile investment for your signal booster system.
Designed with convenience in mind, the Wirox Indoor Panel Antenna features a lightweight and compact design, making it easy to install and position on walls or in suitable areas for optimal signal propagation.
Who can benefit from the Wirox Indoor Panel Antenna? Anyone looking to expand the coverage of their cellular system with an affordable and directional indoor antenna. These antennas offer higher gain compared to omnidirectional dome antennas, making them particularly effective in rural areas or when maximum signal power is desired. Although placement considerations are required, the Wirox Indoor Panel Antenna can significantly improve signal strength when utilized correctly. Elevate your cellular experience with the reliable performance of Wirox.
Technical Information
Please contact us if you want more information.
Frequency Range: | 617-697 / 698-960 / 1710-2700 MHz |
Input Impedance: | 50 ohm |
Max Gain: | 5.5 / 6 / 8 dBi |
Beamwidth | H:110° E:70° / H:90° E:80°/ H:65° E:55° |
VSWR: | <2 |
Polarization Type | Vertical |
Radiation Pattern | Directional |
Connector type | N-Female |
Dimensions | 8.2" x 7" x 1.78" |
Weight | 2.2 lb |
Mount Type | Wall mount |
Operating Humidity | 5% ~ 95% |
Operating Temp | -22° F to +140° F |
Cover material: | ABS |
Colour | White |
