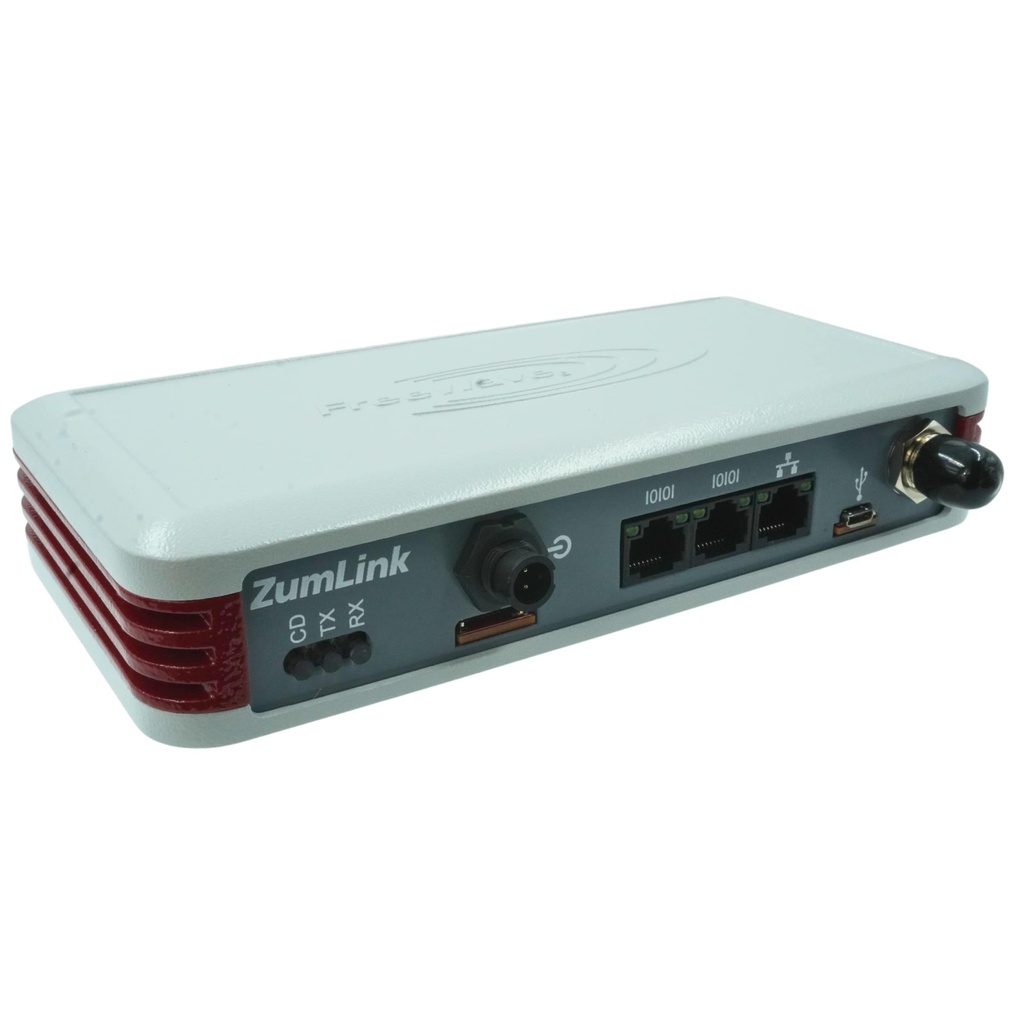

Rugged 900 Series Ethernet Radio
FreeWave’s ZumLink™ 900 Series is made for secure collection, transport, and control of data in rugged industrial environments. These radios provide a long-range, low-power solution for remote wireless communications — with capabilities that can be seamlessly added as IIoT requirements evolve.
The ZumLink Z9-PE and Z9-P operate in the unlicensed 900 MHz spectrum and utilize Frequency Hopping Spread Spectrum (FHSS) technology for cybersecure data transfer with RF link rates up to 4 Mbps. Performance is further enhanced by FreeWave’s Network Accelerators, which utilize techniques such as packet compression, packet aggregation, forward error correction, and Adaptive Spectrum Learning to maximize network throughput, efficiency, and reliability.
ZumLink radios are ideal in field area networks, systems, and devices such as those used by oil and gas, precision agriculture, water / wastewater, smart cities, and utilities, and deliver advanced features to maximize performance of virtually any M2M, SCADA, or IIoT application used today or in future operations.
Key Features
- Uses Unlicensed 900 MHz Spectrum - Cost-effective, easy to deploy
- High Speed Data Rates - Five RF link rates supporting from 80 kbps to 4 Mbps
- Long Range - Up to 97 km (60 miles) with clear line of sight
- Low Power - 355 mA @ 12V in transmit; 145 mA @ 12V in receive
- Secure - Frequency Hopping Spread Spectrum (FHSS) technology; SSH, SNMP, 128- and 256-bit AES counter mode encryption options
- Industrial Grade - Class I, Division 2 certified; operating in temperatures from -40°C to +75°C
- Leverages FreeWave’s Network Accelerators - Packet Compression, packet aggregation, forward error correction, and adaptive spectrum learning to maximize network efficiency
- IQ-Ready - Software upgradable to include FreeWave’s IQ Application Environment, a Linux-based platform to deploy and run edge applications
Technical Information
Please contact us if you want more information.
| Frequency Range: | 902 to 928 MHz |
| Output Power: | 10 mW to 1 W; user selectable |
| Range: | 97 km (60 miles) with clear line of sight |
| Channel Spacing: | 230.4, 345.6, 691.2, 1382.4, 1612.8 (Beta) and 3225.6 kHz |
| System Gain: | 135 dB |
| Data Encryption: | 128-bit and 256-bit AES CCM |
| VLAN: | 802.1Q |
| Serial: | TCP server, Modbus/TCP, Modbus RTU, TCP client |
| Traffic Filtering: | Netmask filter, ARP filter |
| User Interface Rates: | Ethernet Rate: 10/100 Mbps; Serial Rate: up to 250 kbps |
| Serial Protocols: | Asynchronous Byte Oriented Protocols, Modbus, DNP3.0, DF1, X.28 and others |
| Safety: | Class I, Division 2, Groups A-D |
